Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

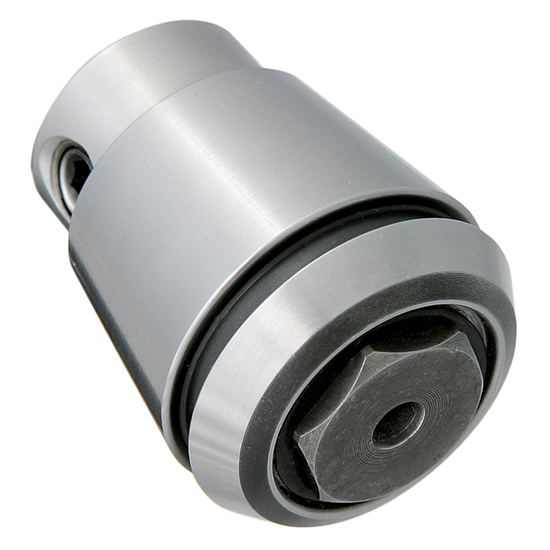

Techniks Floating Tap Collets replace the need for expensive tapping heads as they are compatible with ER, DR, RD, ESX, BR, or DIN 6499 standard collet chucks. The axial compensation they provide prevents taps from breaking. Floating Tap Collets offer a locking feature to prevent the tap from spinning and have reduced tapping clearance requirements.| UNSPSC Code | 27112808 |
| Series | ER25 |
| Capacity (in) | 0.323 |
| Capacity (mm) | 8.2 |
| Type | Floating Tap Collet |
| Style | Single Angle |
| Unit of Tool | Inch |
| Number of Pieces | N/A |
| Incremental Division | N/A |
| Shank Size (in) | 0.323 |
| Shank Size (mm) | 8.2 |
| Overall Length (in) | 1.335 |
| Overall Length (mm) | 33.91 |
| Square Size (in) | 0.242 |
| Square Size (mm) | 6.15 |
| Tap Range (in) | 0.4375 |
| Tap Range (mm) | N/A |
| Tap Size (in) | 0.4375 |
| Tap Size (mm) | N/A |
