Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

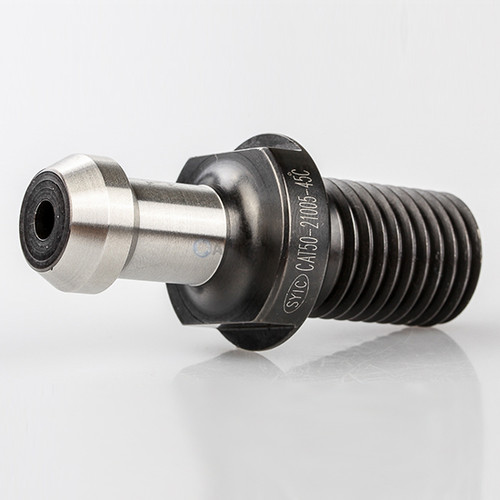

All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.Product Specifications

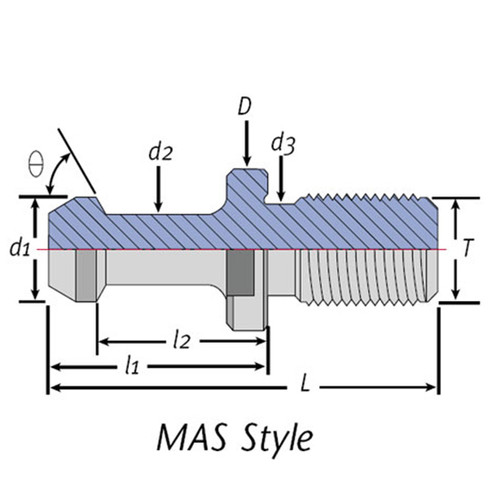

| UNSPSC Code | 20111707 |
| For Use With | CAT50 Taper Holders |
| Style | MAS I Coolant |
| Threads | 1 - 8 |
| Knob Diameter | 0.906" |
| Angle | 45 Degree |
| Neck | 0.669" |
| Hole | N/A |
| Overall Length | 3.346" |
| Flat Size | N/A |
| Spindle Taper | CAT50 Taper Holders |
| Diameter | N/A |
| Size | N/A |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Techniks
Type:
Standard
Taper Size:
CAT50
Thread Size:
1 - 8
Angle Radius (Degree):
45 Degrees
Knob Diameter (Decimal Inch):
0.9060"
Style:
MAS I Coolant
Through Coolant:
Yes
Ships:
Same Business Day if Ordered by 12:30PM PT
