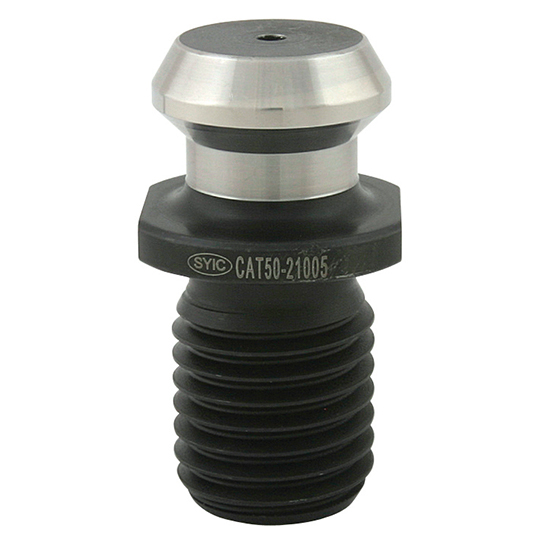

Techniks 21005 | CAT 50-ANSI 45 Retention Knob

$32.00 $19.04
(You save $12.96)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Techniks
Type:
Standard
Taper Size:
CAT50
Thread Size:
1 - 8
Angle Radius (Degree):
45 Degrees
Knob Diameter (Decimal Inch):
1.1400"
Style:
ANSI
Through Coolant:
No
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
40002907
UPC:
650229410496
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Techniks_brand_logo

Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

All mating surfaces are precision ground. Manufactured to the highest standards for maximum safety and long life. Hardened for maximum longevity.

Product Specifications
UNSPSC Code 20111707
For Use With CAT50 Taper Holders
Style ANSI
Threads 1 - 8
Knob Diameter 1.140"
Angle 45 Degree
Neck 0.820"
Hole N/A
Overall Length 2.30"
Flat Size N/A
Spindle Taper CAT50 Taper Holders
Diameter N/A
Size N/A
