Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

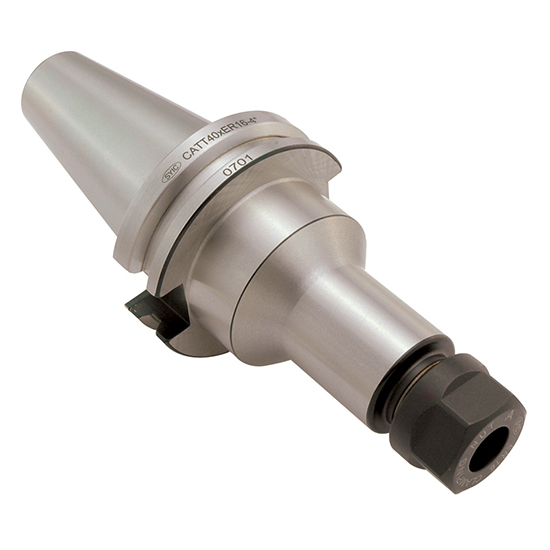

DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through either the spindle or the flange (DIN B). The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.| UNSPSC Code | 27112807 |
| Collet Series | ER32 |
| Body Dia-Workpiece Side (in) | 1.969 |
| Body Dia-Workpiece Side (mm) | 50 |
| Gage Length (in) | 2.76 |
| Gage Length (mm) | 70.104 |
| Gage Length-Face Contact (in) | 2.63 |
| Gage Length-Face Contact (mm) | 66.9 |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Overall Length (in) | 5.44 |
| Overall Length (mm) | 138.2 |
| Material | 8620 Steel |
| Taper | CAT40 |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Metric or Inch |
| Type | DualDRIVE Collet Chuck |
| Style | Single Ended DualDRIVE |
| Capacity Range (in) | 0.043" - 0.83" |
| Capacity Range (mm) | 1.1 - 21mm |
| Balanced to | 25,000 RPM at G2.5 |
