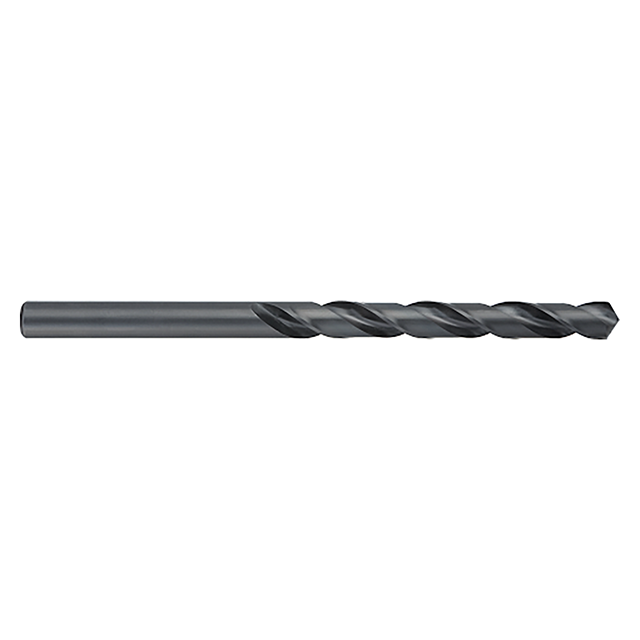

Features:
- Taper length for drilling applications at extreme depths
- 118 Degree point
- Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD52729 |
| Drill Diameter (Inch) | 0.1360" |
| Flute Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.1360" |
| Overall Length (Inch) | 5.3750" |
| Point Angle (Degree) | 118 Degree |
| Number of Flutes | 2 |
| Substrate | High Speed Steel |
| Coating | Black Oxide |
| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
3/22"
Drill Bit Size (Decimal Inch):
0.1360"
Drill Bit Size (mm):
3.45mm
Flute Length (Inch):
3"
Flute Length (Decimal Inch):
3.0000"
Flute Length (mm):
76.20mm
Overall Length (Inch):
5-3/8"
Overall Length (Decimal Inch):
5.3750"
Overall Length (mm):
136.53mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Steel
interval quantity:
12
