Features:
- Excellent performance in hardened steels, titanium, Inconel, and high temp alloys
- Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
- Corner radius for increased edge strength
- Higher helix for enhanced cutting action
- 4 flutes
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA

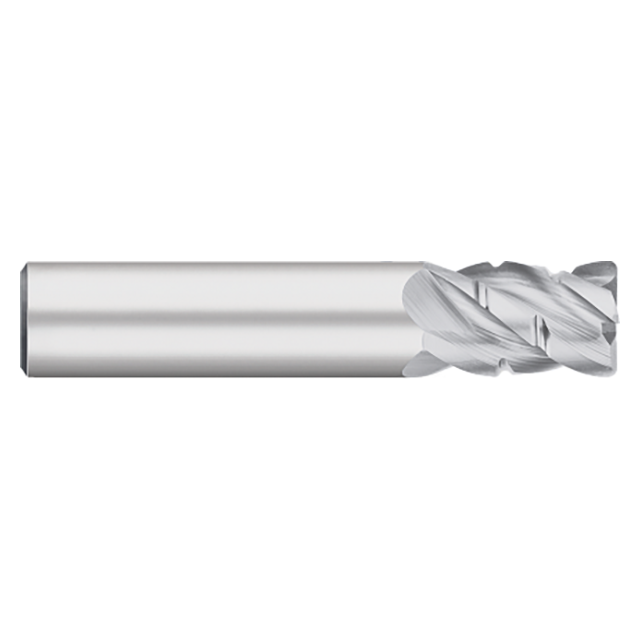

Product Specifications
| Manufacturer Part Number | TC29779 |
| Cutting Diameter (Inch) | 0.7500" (3/4) |
| Shank Diameter | 0.7500" (3/4) |
| Overall Length (Inch) | 5.0000" (5) |
| Length of Cut (Inch) | 2.2500" (2-1/4) |
| Corner Radius (Inch) | 0.0300" |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Cutter Diameter (mm):
19.05mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Helix Angle:
40 Degree
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
Carbide
