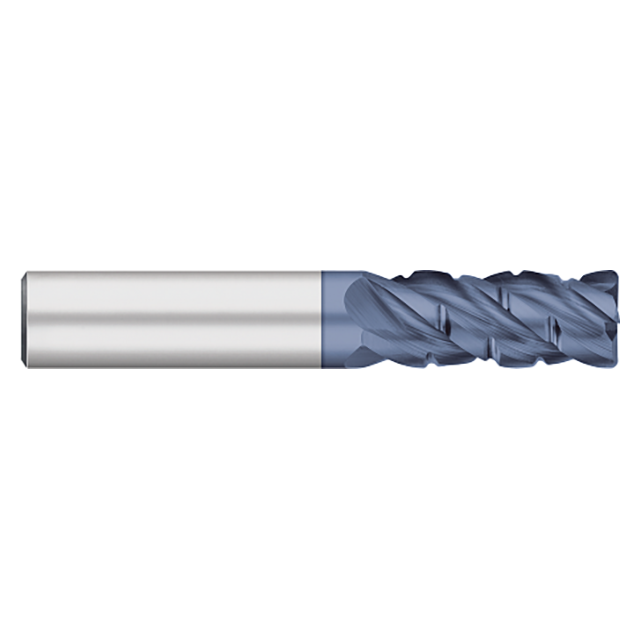

Titan USA TC29848 | 0.7500" (3/4) Diameter x 0.7500" (3/4) Shank x 4.0000" (4) OAL x 0.0400" Radius 4 Flute ALTIN Coated Carbide Roughing End Mill

$220.01
Brand:
Titan USA
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
4
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Material:
Carbide
Finish/Coating:
ALTIN
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
interval quantity:
1
SKU:
25225615
Weight:
0.81 LBS
Shipping:
Free Shipping

Features:

  • Excellent performance in hardened steels, titanium, Inconel, and high temp alloys
  • Engineered with chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Corner radius for increased edge strength
  • Higher helix for enhanced cutting action
  • 4 flutes
  • AlTiN coating offers increased wear and heat resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC29848
Cutting Diameter (Inch)0.7500" (3/4)
Shank Diameter 0.7500" (3/4)
Overall Length (Inch)4.0000" (4)
Length of Cut (Inch)1.6250" (1-5/8)
Corner Radius (Inch)0.0400"
Number of Flutes4
CoatingALTIN
SubstrateCarbide
Product TypeRoughing End Mill
