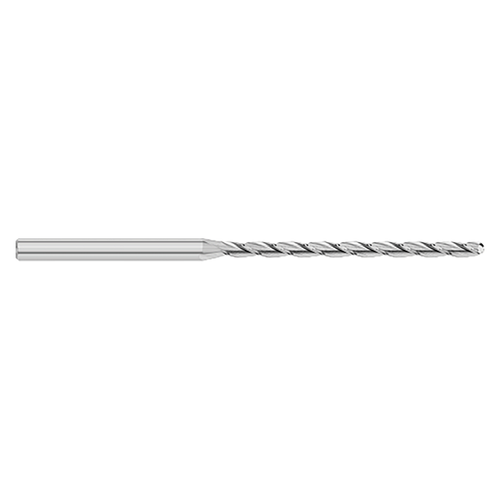

Optimized for high speed slotting and profiling in aluminum and non-ferrous materials. This 45 Degree helix End Mill is engineered for faster chip removal and a better finish.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 3 flutes
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- ZrN coating offers increased speed rates and prolonged tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
Manufacturer Part Number | TC65545 |
Cutting Diameter (Inch) | 0.3750" (3/8) |
Shank Diameter (Inch) | 0.3750" (3/8) |
Overall Length (Inch) | 4.0000" (4) |
Length of Cut (Inch) | 1.5000" (1-1/2) |
Corner Radius (Inch) | 0.0150" (1/64) |
Number of Flutes | 3 |
Coating | ZRN |
Substrate | Carbide |
Product Type | Corner Radius End Mill |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0250"
Mill Diameter (mm):
0.64mm
Number of Flutes:
3
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Material:
Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
