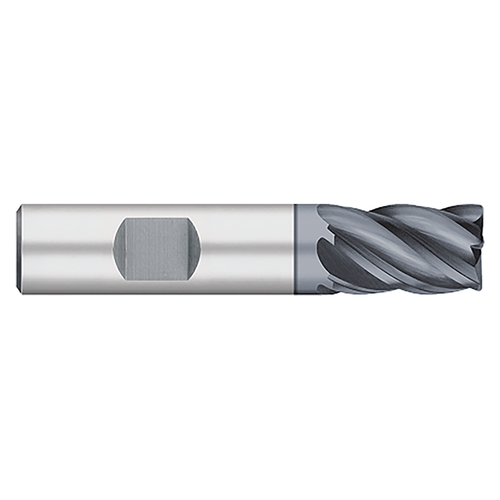

Titan USA TC61734 | 0.6250" (5/8) Diameter x 0.6250" (5/8) Shank x 0.7500" (3/4) LOC x 3.0000" (3) OAL 0.0300" Radius 5 Flute AlTiN Coated Carbide Corner Radius End Mill

Brand:

Titan USA

Cutter Diameter (Inch):

5/8"

Cutter Diameter (Decimal Inch):

0.6250"

Cutter Diameter (mm):

15.88mm

Shank Diameter (Inch):

5/8"

Shank Diameter (Decimal Inch):

0.6250"

Shank Diameter (mm):

15.88mm

Corner Radius (Decimal Inch):

0.0300"

Corner Radius (mm):

0.76mm

Length of Cut (Inch):

3/4"

Length of Cut (Decimal Inch):

0.7500"

Length of Cut (mm):

19.05mm

Overall Length (Inch):

3"

Overall Length (Decimal Inch):

3.0000"

Overall Length (mm):

76.20mm

Helix Angle:

45 Degree

Number of Flutes:

5

Finish/Coating:

AlTiN

Material:

carbide

interval quantity:

1

SKU:

25261135

UPC:

Weight:

0.46 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
