Designed for high speed slotting and profiling in aluminum and non-ferrous materials, this Titan USA offering of 2 flute, square carbide end mills for aluminum feature tooling with a 45 Degree helix for faster chip removal and improved part finish.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Offered in stub and regular length styles
- Center cutting
- ZrN coating offers increased speed rates and prolonged tool life
- Solid carbide
- Precision manufactured in the USA
Product Specifications

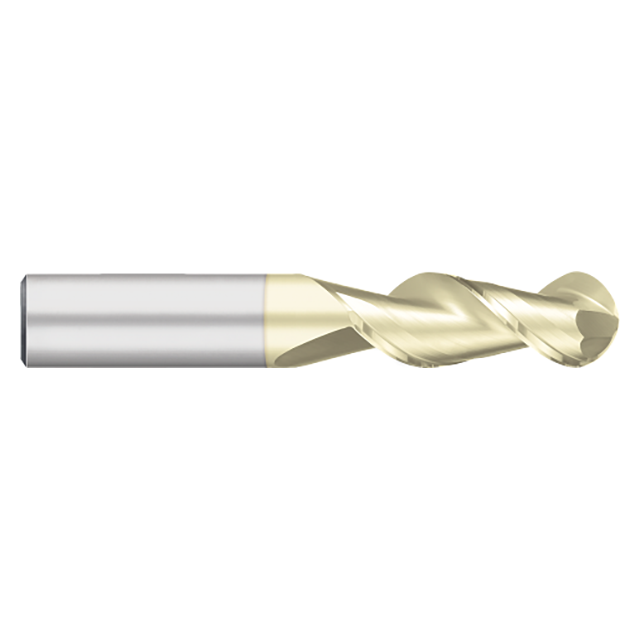

| Manufacturer Part Number | TC63108 |
| Cutter Diameter (Inch) | 1.0000" (1) |
| Length of Cut (Inch) | 2.2500" (2-1/4) |
| Shank Diameter (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 5.0000" (5) |
| Number of Flutes | 2 |
| Substrate | Carbide |
| Coating | ZRN |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1"
Cutter Diameter (Decimal Inch):
1.0000"
Cutter Diameter (mm):
25.40mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Helix Angle:
45 Degree
Number of Flutes:
2
Finish/Coating:
ZrN
Material:
Carbide
interval quantity:
1
