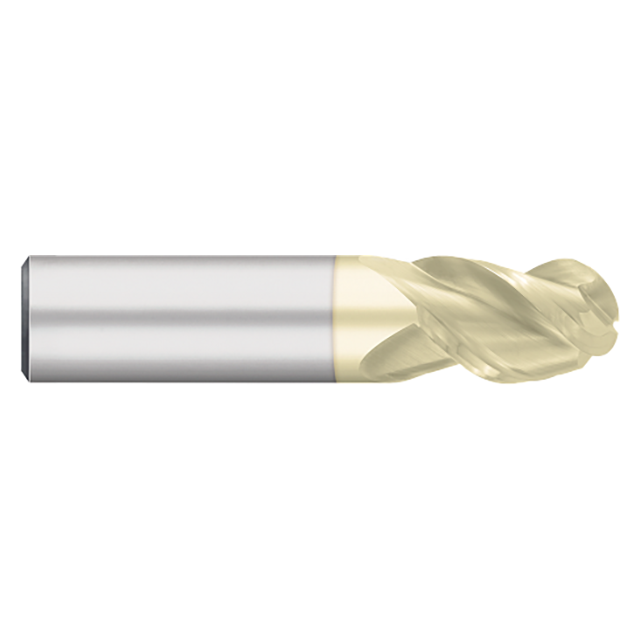

Featuring a 45 Degree helix for faster chip removal and enhanced part finish, this offering of 3 flute ball end mills provides optimal performance in high speed slotting and profiling applications of aluminum and non-ferrous materials.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC63122 |
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.7500" (1-3/4) |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 4.0000" (4) |
| Coating | Uncoated |
| Substrate | Carbide |
| Number of Flutes | 3 |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Cutter Diameter (mm):
19.05mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Length of Cut (Inch):
1-3/4"
Length of Cut (Decimal Inch):
1.7500"
Length of Cut (mm):
44.45mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
45 Degree
Number of Flutes:
3
Finish/Coating:
Uncoated
Material:
Carbide
