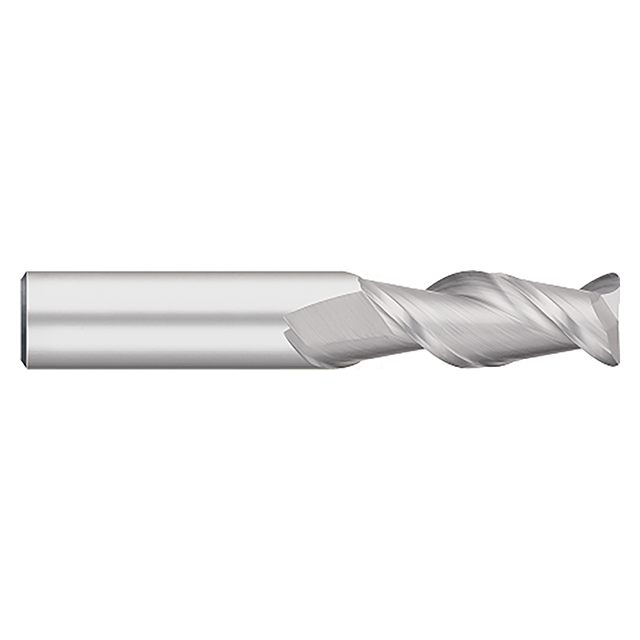

Titan USA's solid carbide offering of 45 Degree helix general purpose End Mills for Aluminum features 2 flutes and a corner radius profile.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Corner radius for increased edge strength
- 45 Degree helix for faster chip removal and a better finish
- 2 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC64616 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Corner Radius (Inch) | 0.0200" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 2 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Corner Radius End Mill |
