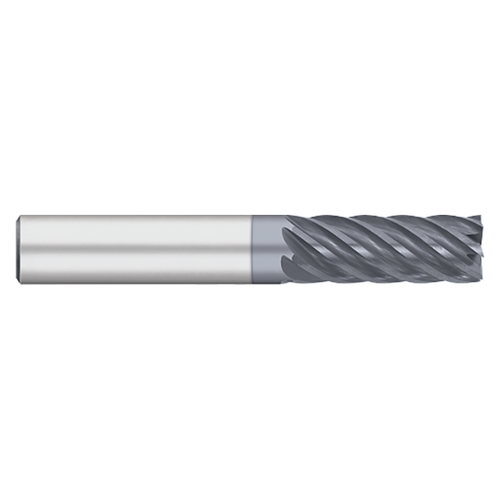

Titan USA TC64800 | 0.2500" (1/4) Diameter x 0.2500" (1/4) Shank x 0.3750" (3/8) LOC x 2.0000" (2) OAL 7 Flute AlCrO-MAX Coated Carbide Square End Mill

$36.50 $31.39
(You save $5.11)
Brand:
Titan USA
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Helix Angle:
38 Degree
Number of Flutes:
7
Finish/Coating:
AlCrO-MAX
Material:
carbide
interval quantity:
1
SKU:
25229113
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • 7 flutes
  • Square profile
  • Solid Carbide
  • Large core and eccentric relief for improved tool life
  • Post-polished AlCrO-MAX coating increases wear and high heat resistance
  • Delivers efficient, chatter free machining in light profiling, High Efficiency Milling (HEM), and finishing applications
  • VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC64800
Cutter Diameter (Inch)0.2500" (1/4)
Shank Diameter (Inch)0.2500" (1/4)
Length of Cut (Inch)0.3750" (3/8)
Overall Length (Inch)2.0000" (2)
Number of Flutes7
CoatingAlCrO-MAX
SubstrateCarbide
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
