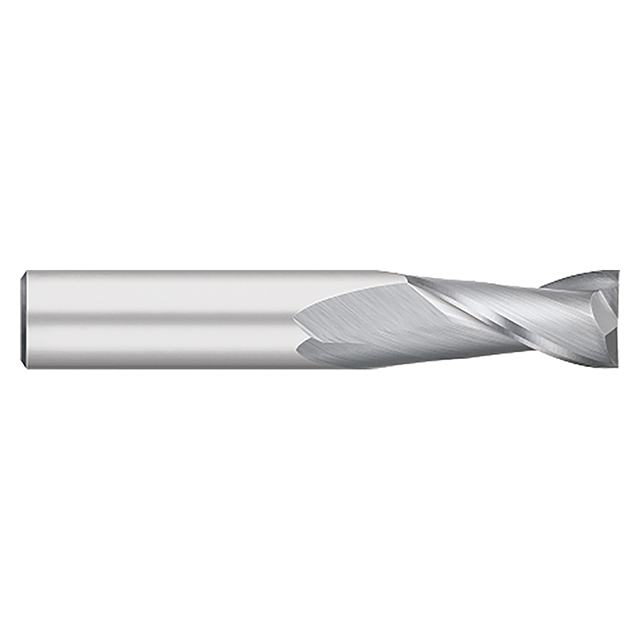

Titan USA offering of 2 flute end mills features a square end profile and 30 Degree helix angle.
Features:
- Excellent for keyways
- Tight tolerance for precision machining
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TC65013 |
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 4.0000" (4) |
| Coating | Uncoated |
| Substrate | Carbide |
| Number of Flutes | 2 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/4"
Cutter Diameter (Decimal Inch):
0.7500"
Cutter Diameter (mm):
19.05mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
30 Degree
Number of Flutes:
2
Finish/Coating:
Uncoated
Material:
Carbide
