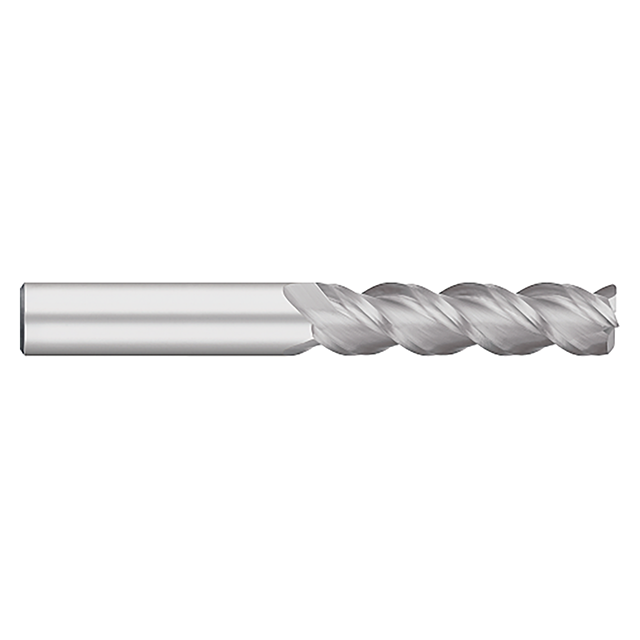

Optimized for high speed slotting and profiling in aluminum and non-ferrous materials. This 45 Degree helix End Mill is engineered for faster chip removal and a better finish.
Features:
- Designed for high speed slotting and profiling in aluminum and non-ferrous materials
- Additional flute has 50% more cutting performance than certain 2 flute applications
- 3 flutes
- 45 Degree helix for faster chip removal and a better finish
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC65456 |
| Cutting Diameter (Inch) | 0.1250" (1/8) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 2.2500" (2-1/4) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Corner Radius (Inch) | 0.0300" |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Corner Radius End Mill |
