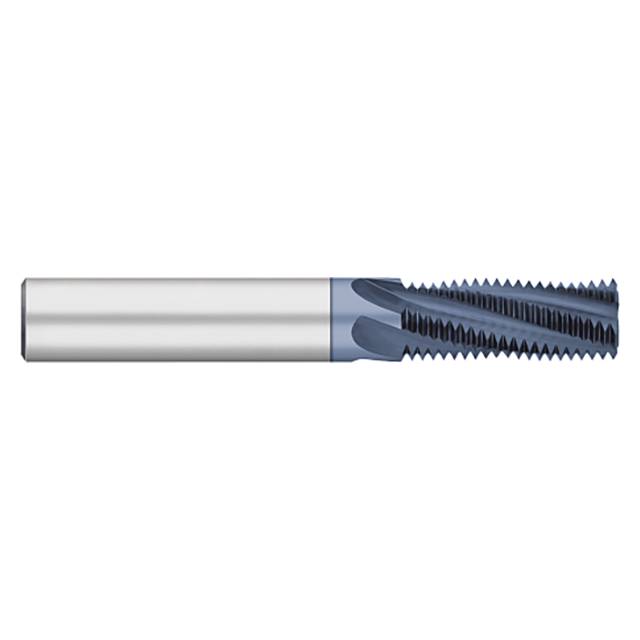

Features:
- Solid carbide
- Mills right hand and left hand threads
- AlTiN coating offers increased wear and heat resistance
- Cuts internal and external National Pipe Taper (N.P.T.) threads
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC84200 |
| Cutter Diameter (Inch) | 0.2450" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.4370" (7/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Thread Size (Inch) | 1/16"-27 |
| Number of Flutes | 3 |
| Coating | AlTiN |
| Substrate | Carbide |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
12/49"
Cutter Diameter (Decimal Inch):
0.2450"
Cutter Diameter (mm):
6.22mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4370"
Length of Cut (mm):
11.10mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Number of Flutes:
3
Finish/Coating:
AlTiN
Material:
carbide
interval quantity:
1
