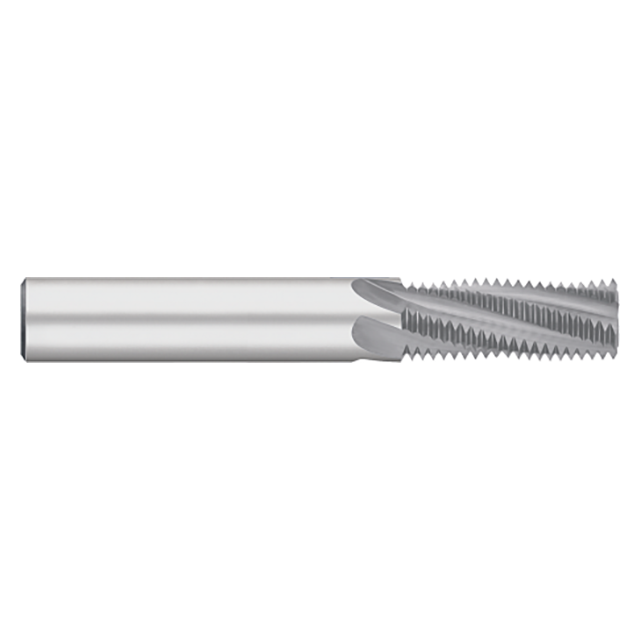

Optimized to cut internal and external National Pipe Taper for Fuels (N.P.T.F.) Threads, this offering of Titan USA tools mills right hand and left hand threads.
Features:
- Cuts internal and external National Pipe Taper for Fuels (N.P.T.F.) threads
- Mills right hand and left hand threads
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC84311 |
| Cutter Diameter (Inch) | 0.4950" |
| Length of Cut (Inch) | 0.8750" (7/8) |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 4 |
| Thread Size (Inch) | 3/4"-14 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Helical Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
49/99"
Cutter Diameter (Decimal Inch):
0.4950"
Cutter Diameter (mm):
12.57mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
