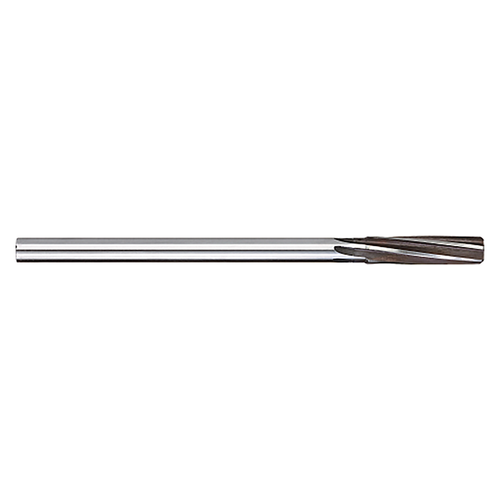

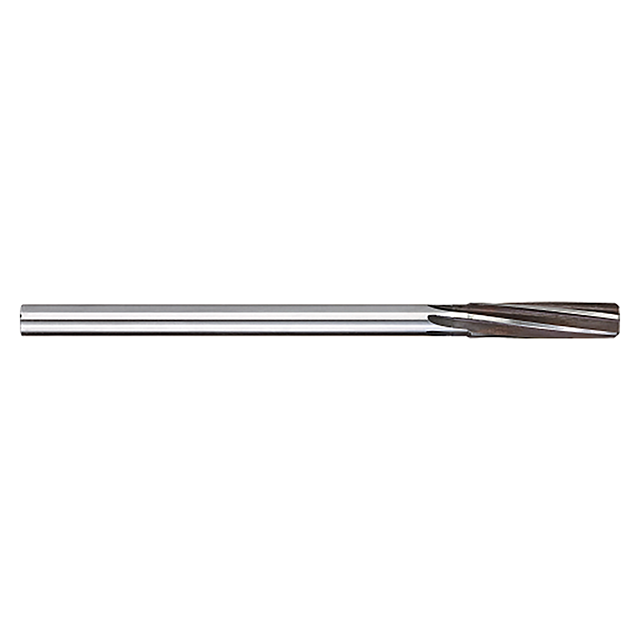

These fully stocked solid carbide Titan USA Reamers feature a 45 Degree chamfer angle and straight flutes, ideal for through and blind hole applications.
Features:
- Straight flute general purpose reamers for through and blind hole applications
- 45 Degree chamfer angle
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC87145 |
| Shank Diameter | 0.1170" |
| Overall Length (Inch) | 2.2500" (2-1/4) |
| Overall Reach (Inch) | 1.1250" (1-1/8) |
| Margin Length (Inch) | 0.6250" (5/8) |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Chucking Reamer |
