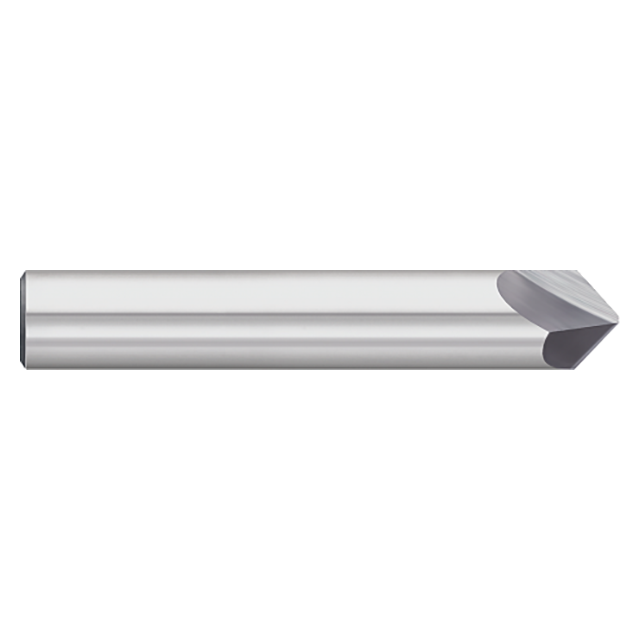

Name: Titan USA TC87616 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 0.1450" LOC x 2.5000" (2-1/2) OAL 82 Degree Included Angle 2 Flute Uncoated Carbide Chamfer Mill
Brand: Titan USA
SKU: 25230537
Price: 25.56 USD
Availability: InStock

Titan USA TC87616 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 0.1450" LOC x 2.5000" (2-1/2) OAL 82 Degree Included Angle 2 Flute Uncoated Carbide Chamfer Mill

$25.56

interval quantity:

SKU:

25230537

Weight:

0.06 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

2 flutes
Solid carbide
Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
CNC ground in the USA

Product Specifications

Manufacturer Part Number	TC87616
Cutter Diameter (Inch)	0.3125" (5/16)
Shank Diameter (Inch)	0.3125" (5/16)
Length of Cut (Inch)	0.1450"
Overall Length (Inch)	2.5000" (2-1/2)
Tip (Inch)	0.0600"
Theoretical Tip Length (Inch)	0.0350"
Number of Flutes	2
Included Angle (Degree)	82 Degree
Angle per Side (Degree)	41 Degree
Coating	Uncoated
Substrate	Carbide
Product Type	Chamfer Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
