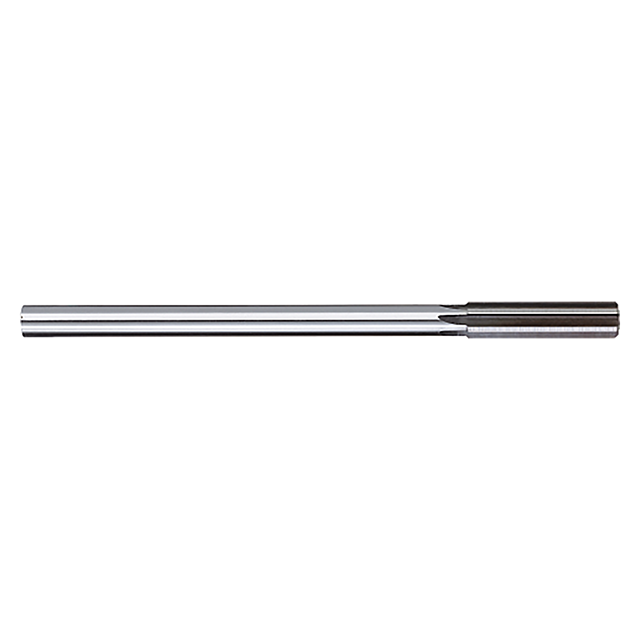

Fully stocked in options ranging from 2 flute to 10 flute, this straight flute offering of general purpose Titan USA Reamers are ideal for through and blind hole applications, and feature a 45 Degree chamfer angle.
Features:
- Straight flute general purpose reamers for through and blind hole applications
- 45 Degree chamfer angle
- Flute options from 2 to 10
- M42 Cobalt
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TR96370 |
| Reamer Diameter (Inch) | 0.1181" |
| Reamer Diameter (mm) | 3mm |
| Margin Length (Inch) | 0.8750" (7/8) |
| Shank Diameter (Inch) | 0.1120" |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Number of Flutes | 4 |
| Substrate | Cobalt |
| Coating | Uncoated |
| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
2/17"
Reamer Diameter (Decimal Inch):
0.1181"
Reamer Diameter (mm):
3.00mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Number of Flutes:
4
Material:
Cobalt
Finish/Coating:
Uncoated
interval quantity:
1
