Features:
- For optimal results, use a taper tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications

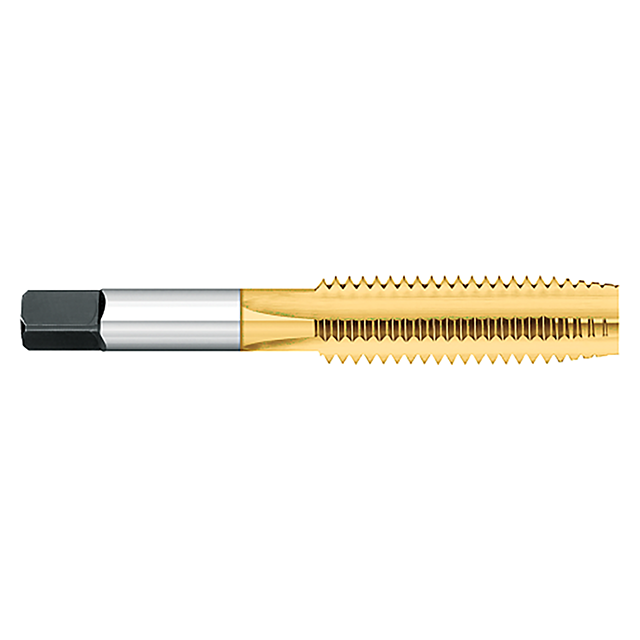

| Manufacturer Part Number | TT75718 |
| Shank Diameter (Inch) | 0.1680" |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Across Flat (Inch) | 0.1310" |
| End Length (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Thread Size (mm) | M4 X 0.7 |
| Number of Flutes | 4 |
| Limit | D4 |
| Type | Taper |
| Coating | TIN |
| Substrate | High Speed Steel |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
