Features:
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- Lube grooves for lubrication and venting in blind holes
- Taps are on blanks that meet ANSI specifications
- Plug - 4.0 Thread Chamfer for through hole tapping
- Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
- TiN coating provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications

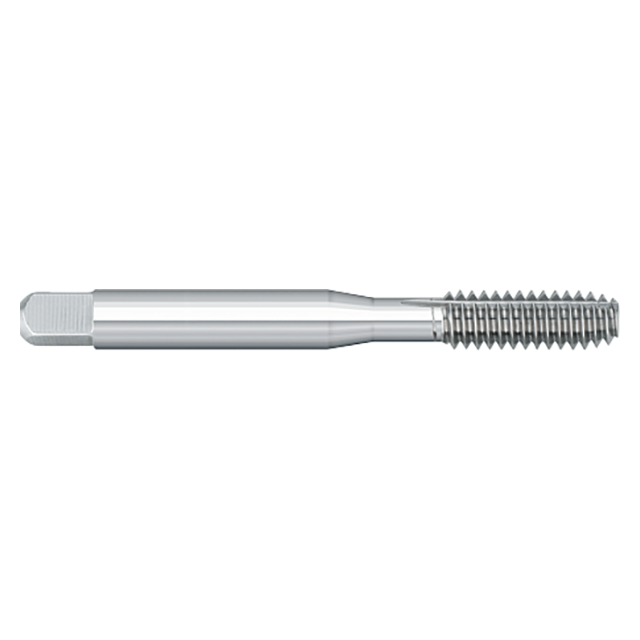

| Manufacturer Part Number | TT82861 |
| Shank Diameter (Inch) | 0.1940" |
| Thread Length (Inch) | 0.8750" (7/8) |
| Overall Length (Inch) | 2.3750" (2-3/8) |
| Thread Size (Inch) | #10-32 |
| Across Flat (Inch) | 0.1520" |
| End Length (Inch) | 0.2500" (1/4) |
| Lube Grooves | 1 |
| Limit | H3 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Type | Plug |
| Product Type | Thread Forming Tap |
