Features:
- High speed steel
- Taps are on blanks that meet ANSI specifications
- Bottom - 2.5 Thread Chamfer for blind hole tapping
- Lube grooves for lubrication and venting in blind holes
- Thread forming taps have no flutes or cutting edges and provide chipless tapping
- Uncoated is great for lead, stainless steels, carbon steels, aluminum and most other ductile materials producing stringy chips
- CNC ground in the USA
Product Specifications

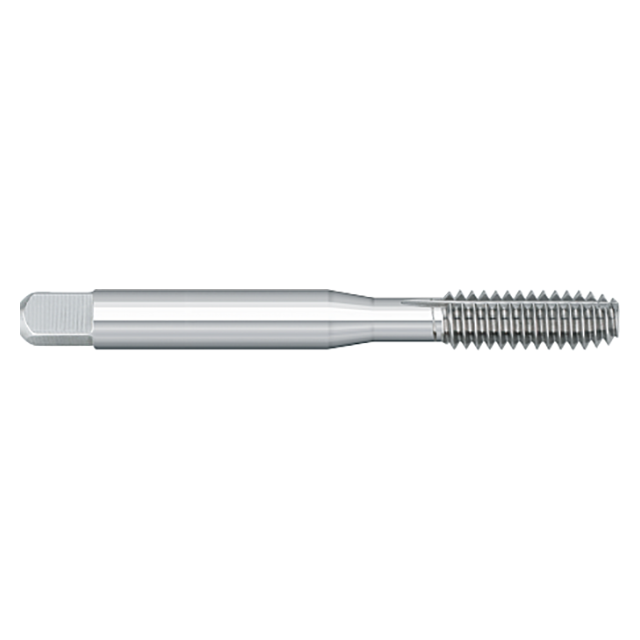

| Manufacturer Part Number | TT82904 |
| Shank Diameter (Inch) | 0.3230" |
| Thread Length (Inch) | 1.4375" (1-7/16) |
| Overall Length (Inch) | 3.1563" |
| Thread Size (Inch) | 7/16"-20 |
| Across Flat (Inch) | 0.2420" |
| End Length (Inch) | 0.4063" |
| Lube Grooves | 4 |
| Limit | H5 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Type | Bottom |
| Product Type | Thread Forming Tap |
