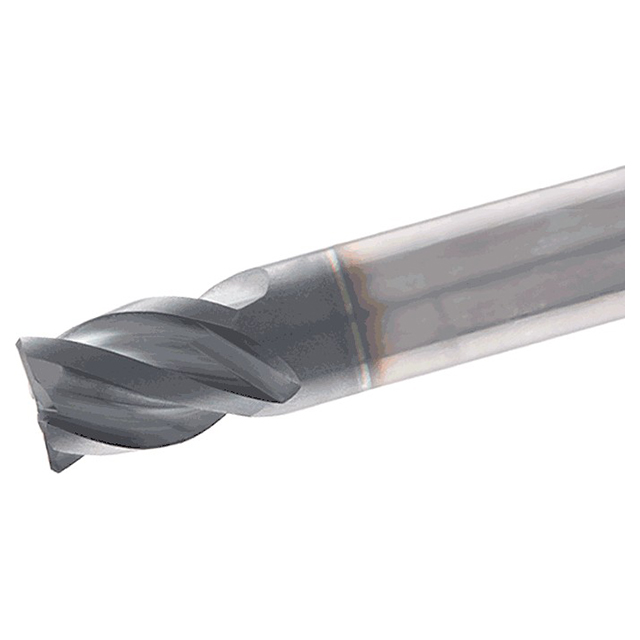

4 Flute chatter dampening endmill, variable helix and variable pitch, short type.
| # MFG | 3302406 |
| Connection Diameter Machine Side (mm) | 6mm |
| Corner Chamfer Width (mm) | 0.25mm |
| Cutting Diameter (mm) | 6mm |
| Maximum Depth of Cut (mm) | 6mm |
| Overall Length (mm) | 50mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.06mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.03mm/tooth |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Chamfer |
