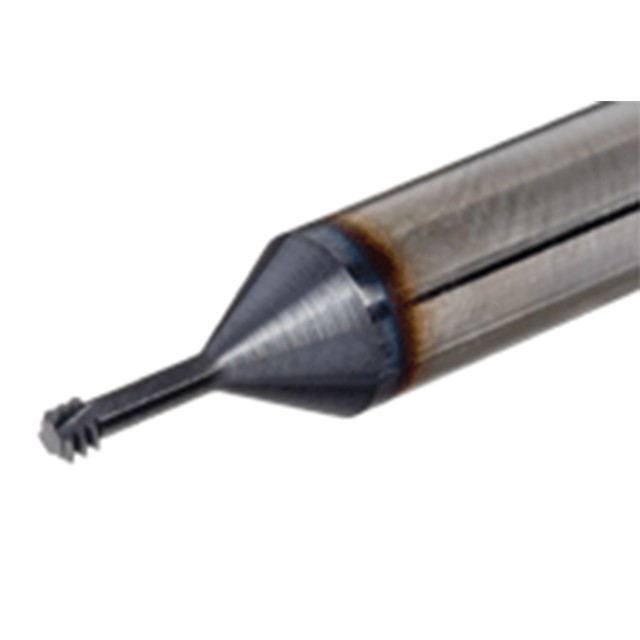

Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread.
| Manufacturer Part Number | 5605661 |
| Connection Diameter Machine Side (Inch) | 0.236" |
| Cutting Diameter (Inch) | 0.061" |
| Functional Length (Inch) | 2.283" |
| Grade | AH750 |
| Threads per Inch Maximum (Inch) | 63.5 Threads |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Hard Materials |
| Application | Internal Thread Milling |
