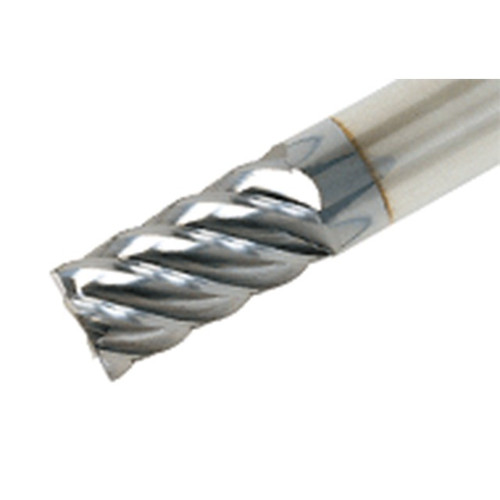

Name: Tungaloy 5621231 | TECH100B6-22W10-72 AH725 10.00mm Diameter x 22.00mm Depth of Cut x 72.00mm OAL 6 Flute TiAlN Coated Carbide Square End Mill
Brand: Tungaloy
SKU: 23125699
Price: 89.76 USD
Availability: InStock

Tungaloy 5621231 | TECH100B6-22W10-72 AH725 10.00mm Diameter x 22.00mm Depth of Cut x 72.00mm OAL 6 Flute TiAlN Coated Carbide Square End Mill

$108.15 $89.76

(You save $18.39)

SKU:

23125699

UPC:

Weight:

1.23 LBS

Shipping:

Free Shipping

Features
Reviews

6 Flute endmill, 45 degree helix angle, for finishing operation. AH750 grade is applicable to the hardened steel up to 65 HRC.

Product Specifications

Manufacturer Part Number	5621231
Connection Diameter Machine Side (mm)	10mm
Cutting Diameter (mm)	10mm
Maximum Depth of Cut (mm)	22mm
Overall Length (mm)	72mm
Maximum Feed per Tooth (mm/Tooth)	0.09mm/tooth
Minimum Feed per Tooth (mm/Tooth)	0.035mm/tooth
Number of Flutes	6
Grade	AH725
Body Material	Carbide
Coating	TiAlN
Application	Shoulder Milling
Cutting Edge Material	Carbide
Tool Type	Solid Carbide Center Cutting Endmills 90
Shank Type	Weldon
Applicable Material	Steel, Stainless Steel, Cast Iron, Hi Temp Alloys
End Shape	Square

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
