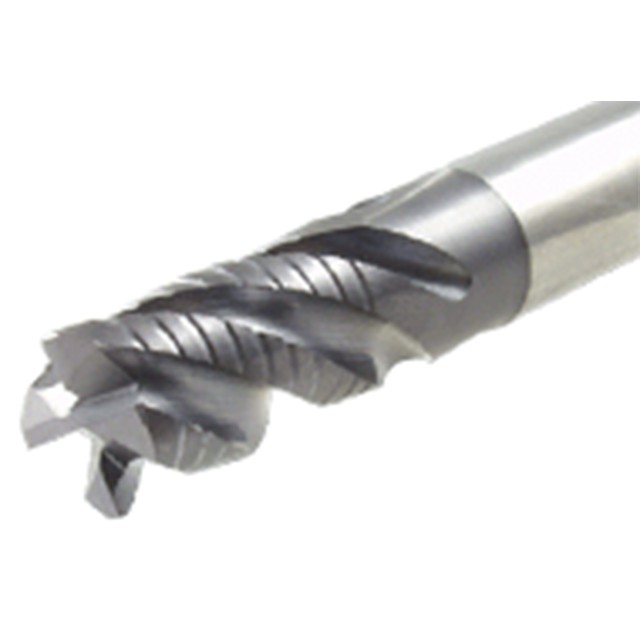

4 Flute roughing endmill, 38 degree helix angle, with chip splitter.
Product Specifications
| Manufacturer Part Number | 5622217 |
| Connection Diameter Machine Side (mm) | 12mm |
| Corner Chamfer Width (mm) | 0.4mm |
| Cutting Diameter (mm) | 12mm |
| Maximum Depth of Cut (mm) | 26mm |
| Overall Length (mm) | 83mm |
| Head Length (mm) | 38mm |
| Neck Length (mm) | 38mm |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Chamfer |
