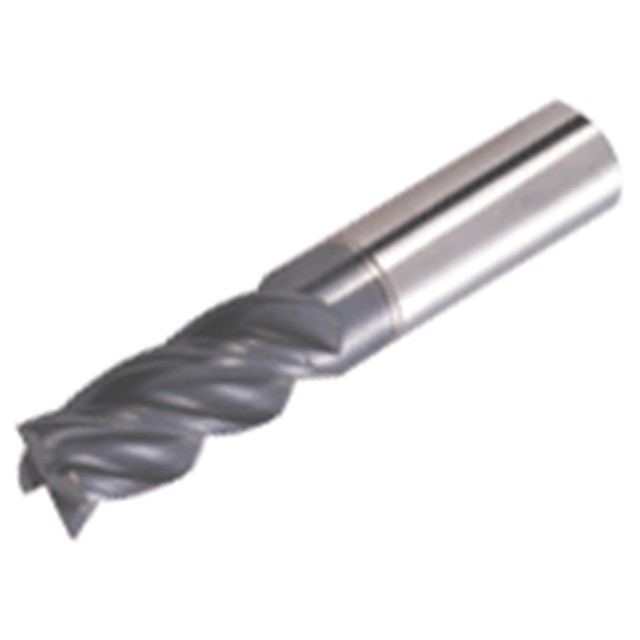

4 Flute endmill, 38 degree helix angle, variable pitch.
Product Specifications
| Manufacturer Part Number | 5622640 |
| Connection Diameter Machine Side (mm) | 6mm |
| Corner Chamfer Width (mm) | 0.15mm |
| Cutting Diameter (mm) | 4mm |
| Maximum Depth of Cut (mm) | 10mm |
| Overall Length (mm) | 57mm |
| Head Length (mm) | 14mm |
| Neck Length (mm) | 14mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.04mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.015mm/tooth |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Round |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Chamfer |
