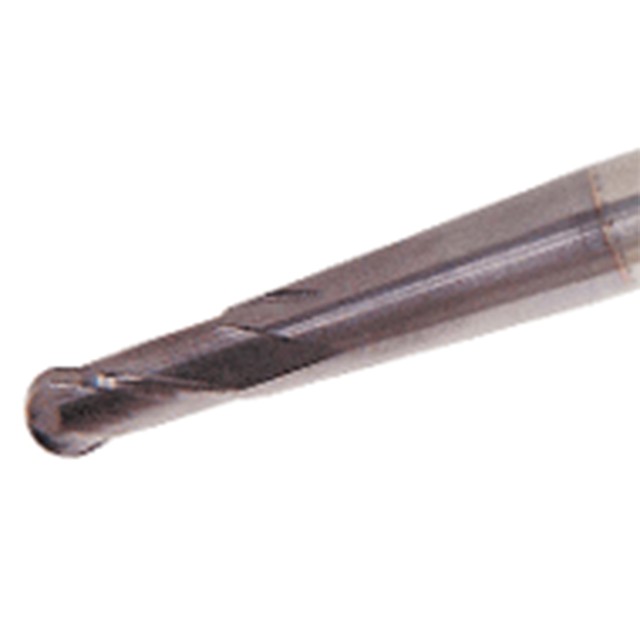

2 flute ball nose endmill, tapered neck type, for hardened steel up to 65 HRC.
Product Specifications
| Manufacturer Part Number | 5650052 |
| Cutting Diameter (mm) | 10mm |
| Connection Diameter Machine Side (mm) | 12mm |
| Corner Radius (mm) | 5mm |
| Depth of Cut Maximum (mm) | 18mm |
| Overall Length (mm) | 130mm |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Neck Diameter | 12 |
| Shank Type | Round |
| Grade | AH750 |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | Profile Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
25/64"
Mill Diameter (Decimal Inch):
0.3900"
Mill Diameter (mm):
10.00mm
Number of Flutes:
2
Material:
Carbide
Shank Type:
Round
Overall Length (Inch):
5-1/8"
Overall Length (Decimal Inch):
5.1200"
Overall Length (mm):
130.00mm
Finish/Coating:
TiAlN
Application:
Profile Milling
