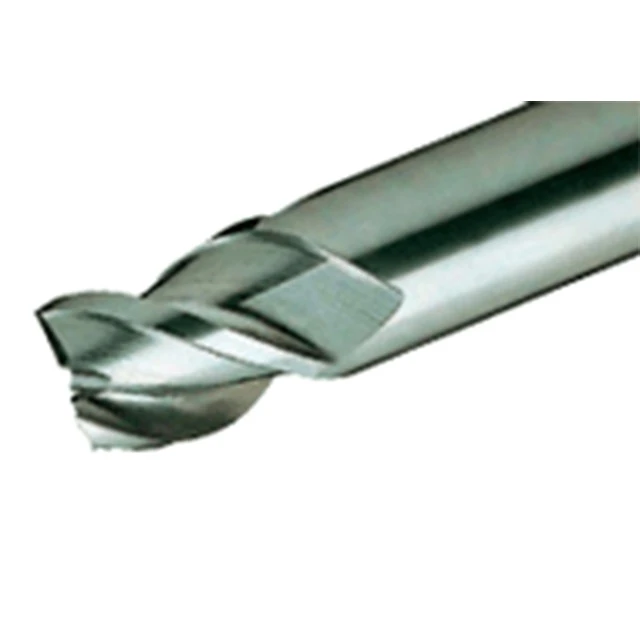

Tungaloy 5651170 | TEC080B3-09W08-58 AH725 8.00mm Diameter x 9.00mm Depth of Cut x 58.00mm OAL 3 Flute TiAlN Coated Carbide Square End Mill

$51.95 $43.12
(You save $8.83)
Brand:
Tungaloy
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3100"
Mill Diameter (mm):
8.00mm
Number of Flutes:
3
Length of Cut (Inch):
23/64"
Length of Cut (Decimal Inch):
0.3500"
Length of Cut (mm):
9.00mm
Shank Type:
Weldon
Material:
Carbide
Finish/Coating:
TiAlN
Shank Diameter (Inch):
9/32"
Shank Diameter (Decimal Inch):
0.2800"
Shank Diameter (mm):
8.00mm
Application:
Shoulder Milling
Overall Length (Inch):
2-9/32"
Overall Length (Decimal Inch):
2.2800"
SKU:
23126186
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

3 Flute endmill, 45 degree helix angle, short type.


Product Specifications
Manufacturer Part Number5651170
Connection Diameter Machine Side (mm)8mm
Cutting Diameter (mm)8mm
Maximum Depth of Cut (mm)9mm
Overall Length (mm)58mm
Number of Flutes3
GradeAH725
Body MaterialCarbide
CoatingTiAlN
ApplicationShoulder Milling
Cutting Edge MaterialCarbide
Shank TypeWeldon
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
End ShapeSquare
