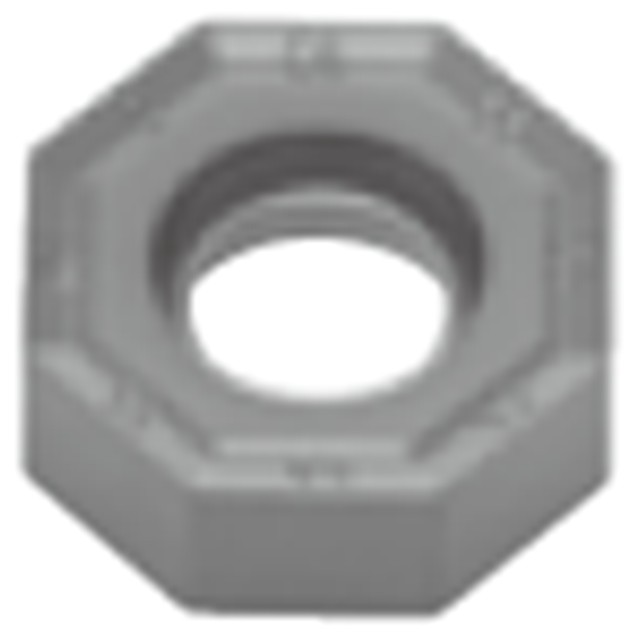

Tungaloy 6715786 | ONMU0705ANPN-MJ T1115 0.681" Diameter x 0.244" Thickness x 0.032" Radius TiCN+Al2O3+TiN Coated Carbide Milling Insert

$28.80 $23.90
(You save $4.90)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1115
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
9/32"
Width (Decimal Inch):
0.2830"
Width (mm):
7.19mm
Inscribed Circle (Inch):
11/16"
Inscribed Circle (Decimal Inch):
0.6810"
Inscribed Circle (mm):
17.30mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2440"
Thickness (mm):
6.20mm
SKU:
23023048
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Double-sided octagonal insert with 16 cutting edges.


Product Specifications
Manufacturer Part Number6715786
Cutting Edge Effective Length (Inch)0.283"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.189"
Inscribed Circle Diameter (Inch)0.681"
Insert Thickness (Inch)0.244"
Insert Width (Inch)0.283"
Maximum Feed per Tooth0.0157"/tooth
Minimum Feed per Tooth0.008"/tooth
Number of Cutting Edges16
ApplicationFace Milling
CoatingTiCN+Al2O3+TiN
Body MaterialCarbide
GradeT1115
Cutting Edge MaterialCarbide
Applicable MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1115
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
9/32"
Width (Decimal Inch):
0.2830"
Width (mm):
7.19mm
Inscribed Circle (Inch):
11/16"
Inscribed Circle (Decimal Inch):
0.6810"
Inscribed Circle (mm):
17.30mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2440"
Thickness (mm):
6.20mm
