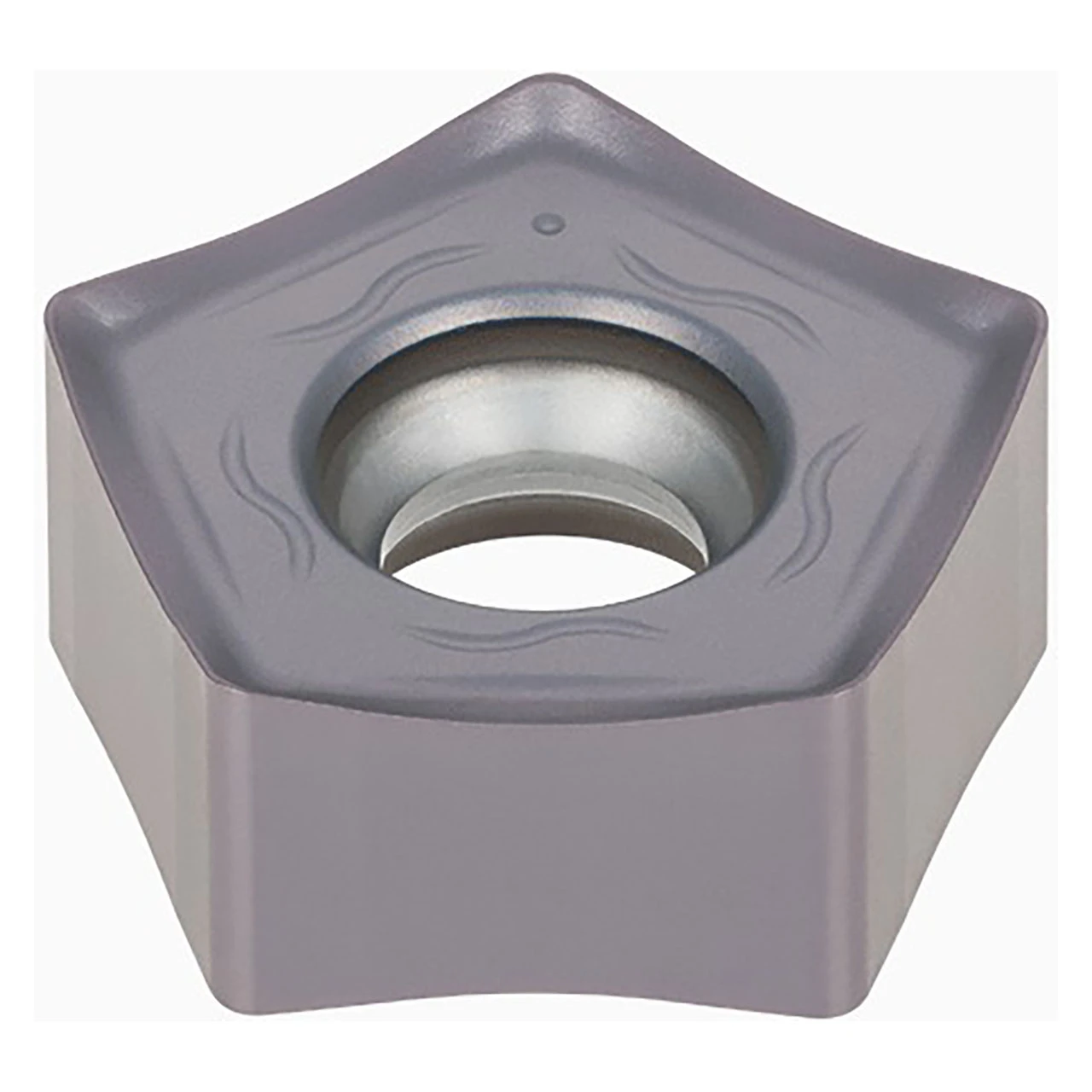

For low cutting force, C class, Neutral geometry, Double sided pentagonal insert. Suitable for stainless steel and soft steel. Can be used on Right and Left hand cutters.
Product Specifications
| # MFG | 6716057 |
| Cutting Edge Effective Length (Inch) | 0.35" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.252" |
| Inscribed Circle Diameter (Inch) | 0.48" |
| Insert Thickness (Inch) | 0.235" |
| Maximum Feed per Tooth | 0.0118"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 10 |
| Wiper Edge Length | 0.055" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
31/64"
Inscribed Circle (Decimal Inch):
0.4800"
Inscribed Circle (mm):
12.19mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2350"
Thickness (mm):
5.97mm
interval quantity:
10
