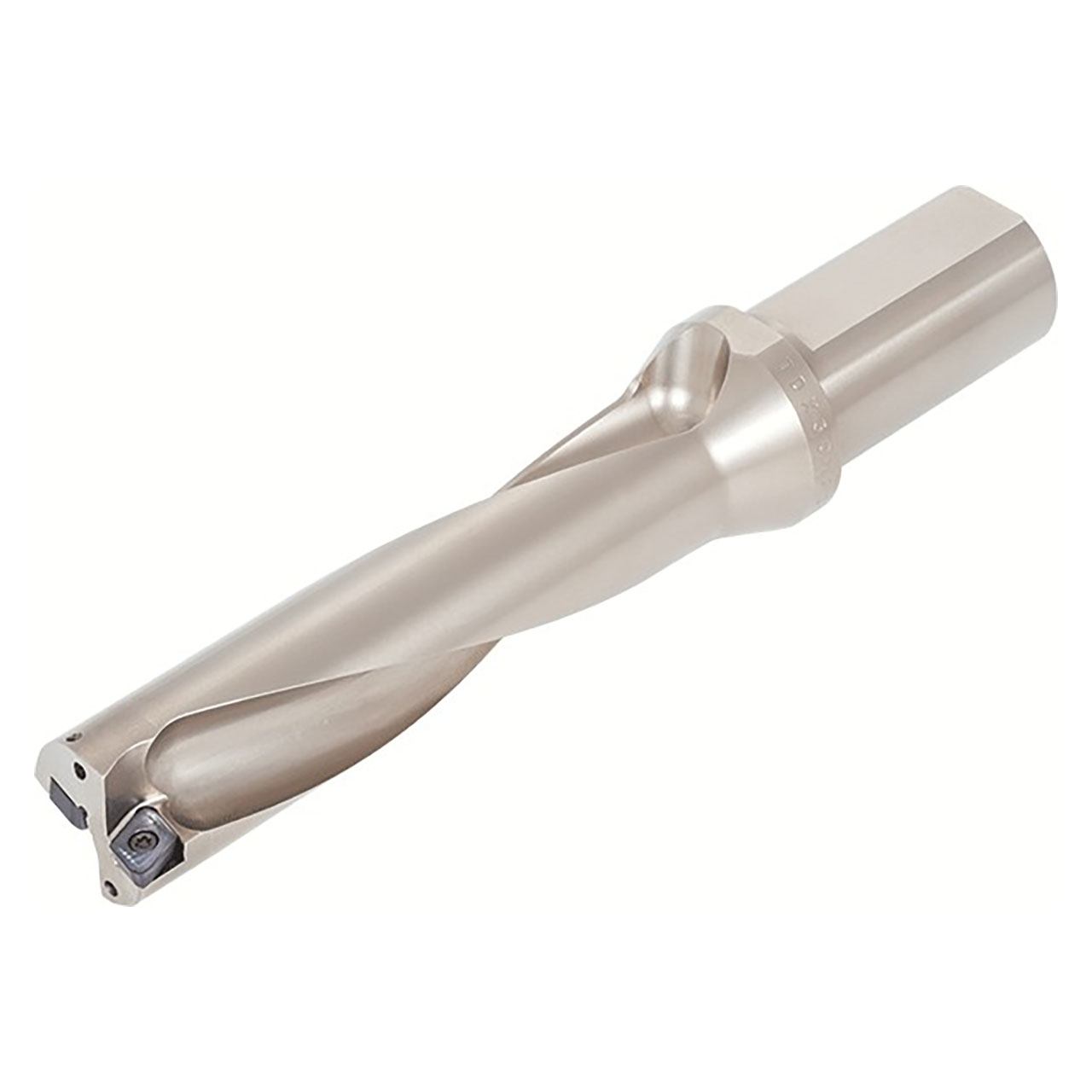

"TungDrillTwisted" Indexable insert drills, L/D=4, flat cotter.
Product Specifications
| # MFG | 6718396 |
| Connection Diameter Machine Side (mm) | 25mm |
| Cutting Diameter (mm) | 26mm |
| Functional Length (mm) | 128mm |
| Overall Length (mm) | 182.60mm |
| Point Length (mm) | 0.58mm |
| Shank Length (mm) | 54mm |
| Usable Length (mm) | 104.6mm |
| Length Chip Flute (mm) | 108.6mm |
| Flange Diameter (mm) | 37mm |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
1-1/32"
Drill Diameter (Decimal Inch):
1.0236"
Drill Diameter (mm):
26.00mm
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
