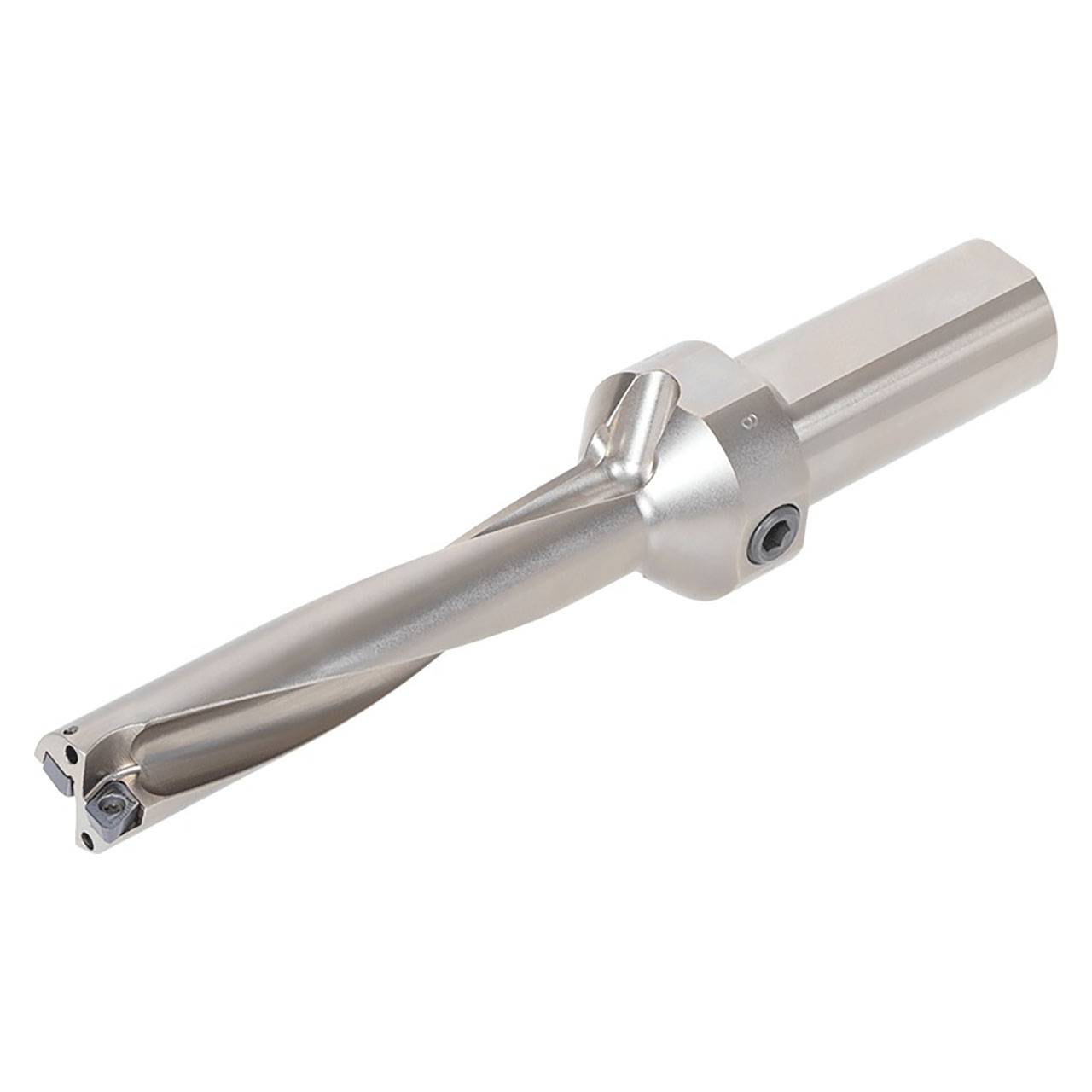

"TungDrillTwisted" Indexable insert drills with side and rear coolant port, L/D=5, flat cotter.
Product Specifications
| # MFG | 6718537 |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Diameter (Inch) | 0.937" |
| Functional Length (Inch) | 5.805" |
| Overall Length (Inch) | 8.108" |
| Point Length (Inch) | 0.023" |
| Shank Length (Inch) | 2.28" |
| Usable Length (Inch) | 4.708" |
| Length Chip Flute (Inch) | 4.83" |
| Flange Diameter (Inch) | 1.457" |
| Decimal Equivalent | 0.937" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
15/16"
Drill Diameter (Decimal Inch):
0.9370"
Drill Diameter (mm):
23.80mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
