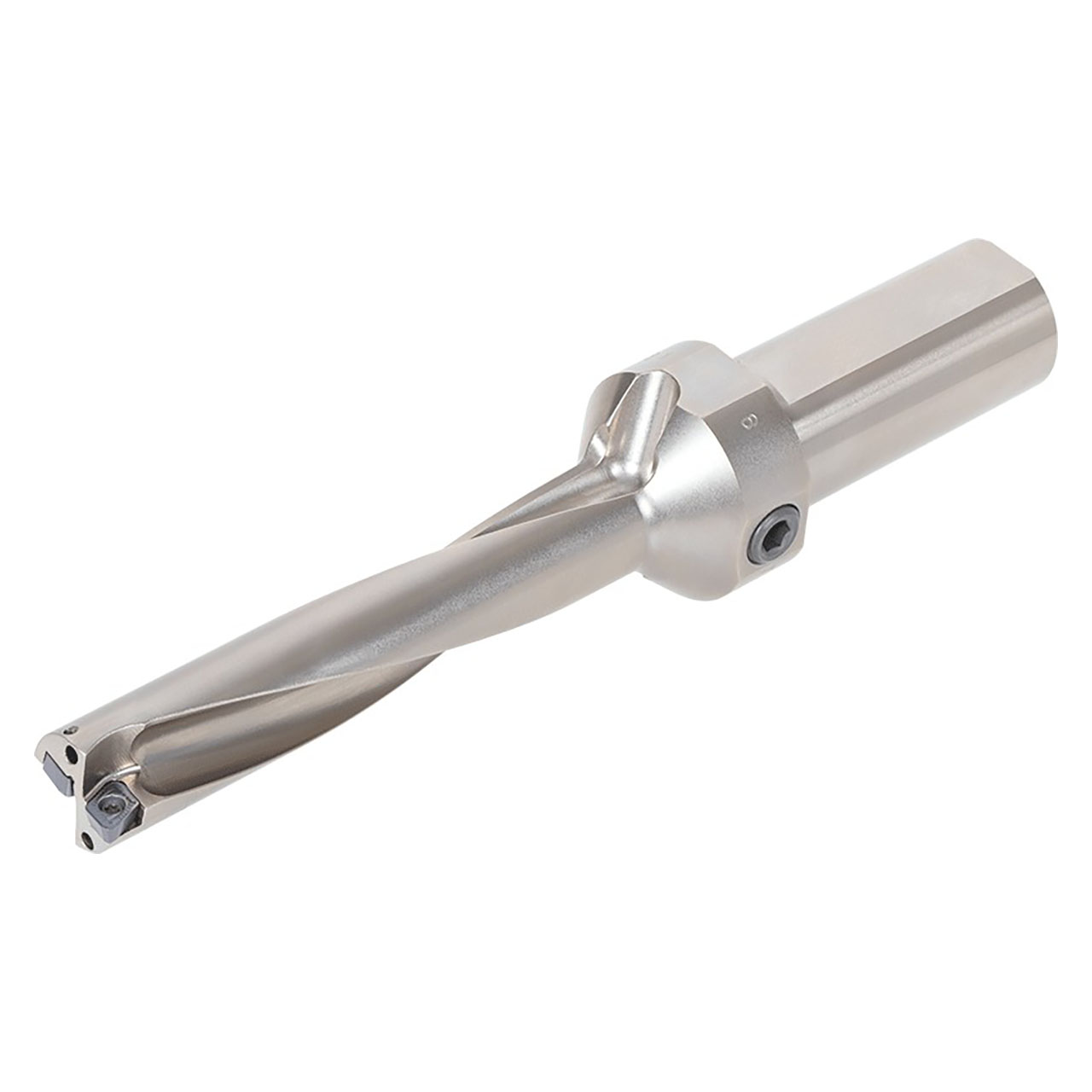

"TungDrillTwisted" Indexable insert drills with side and rear coolant port, L/D=5, flat cotter.
Product Specifications
| # MFG | 6718557 |
| Connection Diameter Machine Side (Inch) | 3/4" |
| Cutting Diameter (Inch) | 0.562" |
| Functional Length (Inch) | 3.841" |
| Overall Length (Inch) | 5.856" |
| Point Length (Inch) | 0.015" |
| Shank Length (Inch) | 2" |
| Usable Length (Inch) | 2.825" |
| Length Chip Flute (Inch) | 2.95" |
| Flange Diameter (Inch) | 1-1/4" |
| Decimal Equivalent | 0.562" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
9/16"
Drill Diameter (Decimal Inch):
0.5620"
Drill Diameter (mm):
14.27mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
interval quantity:
1
