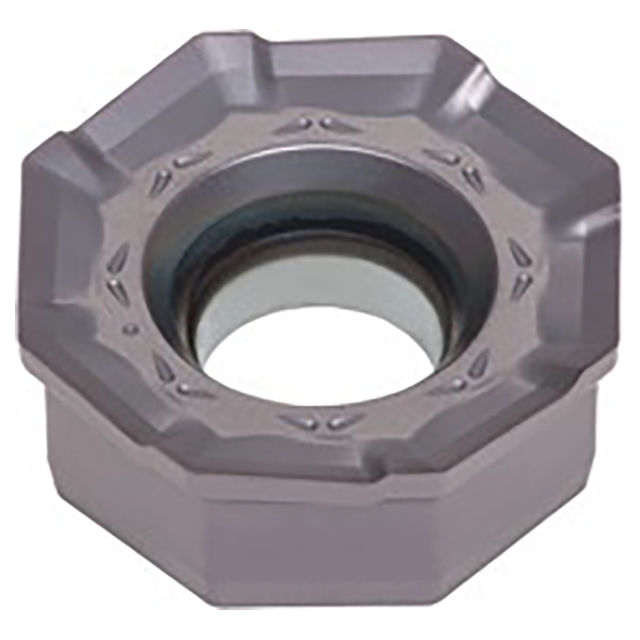

Octagonal Milling Inserts with Positive Rake and ML chipbreaker for low cutting force, 8 corners.
Product Specifications
| # MFG | 6719302 |
| Cutting Edge Effective Length (Inch) | 0.205" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.138" |
| Inscribed Circle Diameter (Inch) | 0.744" |
| Insert Thickness (Inch) | 0.291" |
| Maximum Feed per Tooth | 0.0197"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.047" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH130
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7440"
Inscribed Circle (mm):
18.90mm
Thickness (Inch):
19/64"
Thickness (Decimal Inch):
0.2910"
Thickness (mm):
7.39mm
interval quantity:
10
