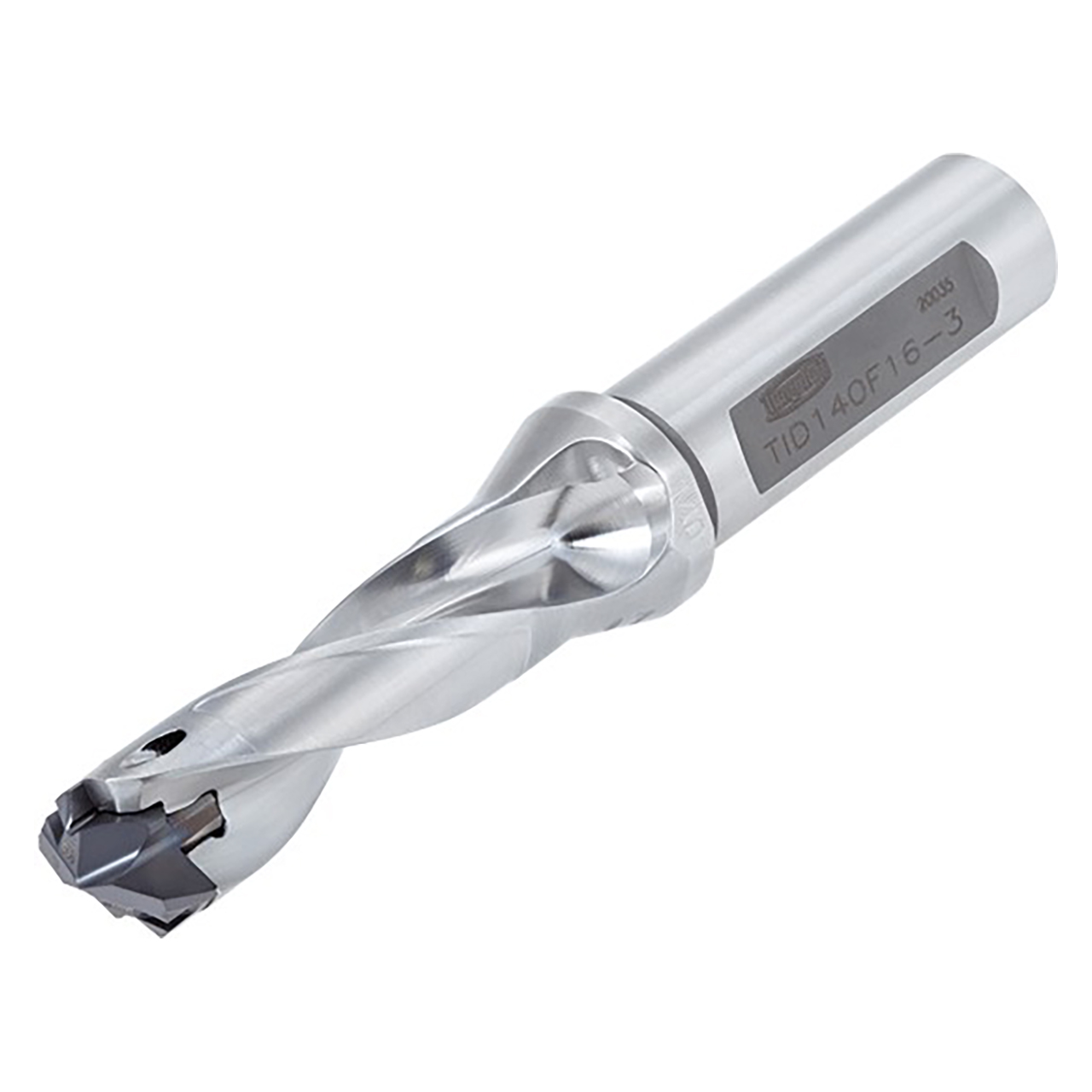

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.862" |
| Cutting Diameter Minimum (Inch) | 0.827" |
| Flange Diameter (Inch) | 1.26" |
| Connection Diameter Machine Side (mm) | 12 mm |
| Overall Length (Inch) | 5.992" |
| Point Length (mm) | 1.67 mm |
| Shank Length (mm) | 65 mm |
| Usable Length (mm) | 75 mm |
| Insert Seat Size Code (SSC) | 11 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.8620"
Minimum Cutting Diameter (Decimal Inch):
0.8270"
Flange Diameter (Decimal Inch):
1.2600"
Body Material:
Steel
Overall Length (Decimal Inch):
5.9920"
Point Length (Inch):
1/8"
Shank Length (Decimal Inch):
2.2050"
Usable Length (Decimal Inch):
2.6310"
interval quantity:
1
