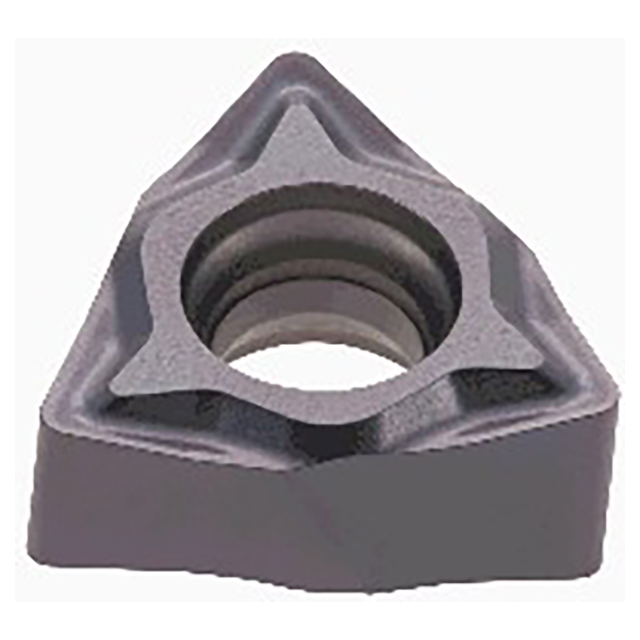

Double sided trigon wiper inserts with TSW chipbreaker for finishing.
Product Specifications
# MFG | 6723699 |
Corner Radius (Inch) | 0.031" |
Maximum Depth of Cut (Inch) | 0.0787" |
Fixing Hole Diameter (Inch) | 0.106" |
Inscribed Circle Diameter (Inch) | 1/4" |
Insert Thickness (Inch) | 1/8" |
Maximum Turning Feed (Inch) | 0.0157"/rev |
Minimum Depth of Cut (Inch) | 0.0118" |
Minimum Turning Feed (Inch) | 0.0031"/rev |
Coating | TiAlN |
Cutting Edge Material | Carbide |
Grade | AH725 |
Tool Type | Turn Positive Inserts |
Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
Chip Breaker Type | TSW |
Major Clearance Angle | 5 Degree |
Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
