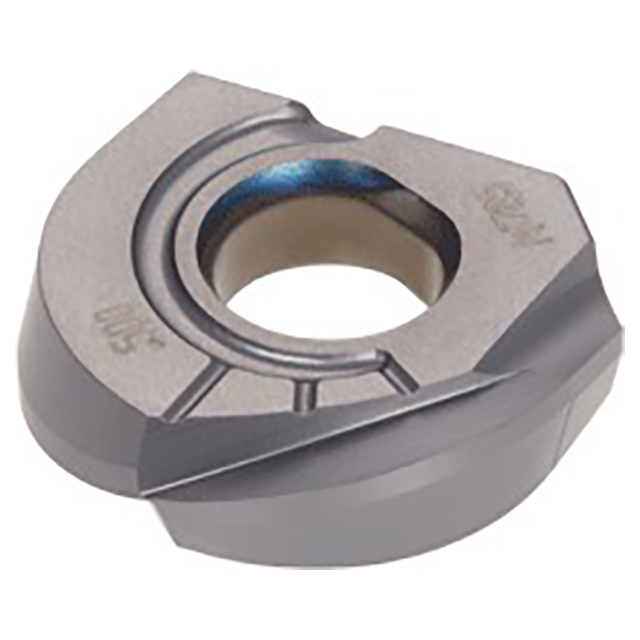

Ball nose type inserts with ML chipbreaker for low cutting force. Suitable for finishing and three-dimensional milling of die & mold.
| # MFG | 6725849 |
| Cutting Edge Effective Length (Inch) | 3/8" |
| Corner Radius (Inch) | 0.188" |
| Depth of Cut Maximum (Inch) | 0.188" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.114" |
| Number of Cutting Edges | 1 |
| Application | Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
