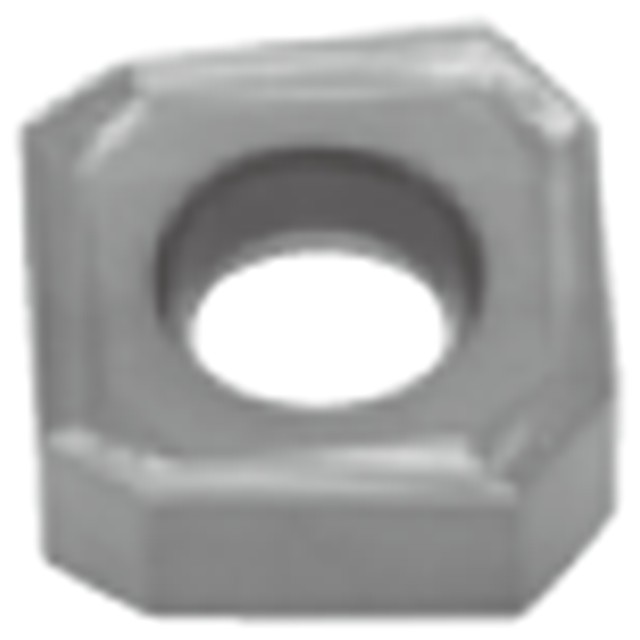

Tungaloy 6727292 | SNMU1706ANTR-ML AH3135 0.681" Diameter x 0.275" Thickness x 0.032" Radius TiAlN Coated Carbide Milling Insert

$32.60 $27.06
(You save $5.54)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
11/64"
Width (Decimal Inch):
0.1730"
Width (mm):
4.39mm
Inscribed Circle (Inch):
11/16"
Inscribed Circle (Decimal Inch):
0.6810"
Inscribed Circle (mm):
17.30mm
Thickness (Inch):
9/32"
Thickness (Decimal Inch):
0.2750"
Thickness (mm):
6.99mm
SKU:
23127606
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Double-sided square insert with 8 cutting edges, for large depth of cut.


Product Specifications
Manufacturer Part Number6727292
Cutting Edge Effective Length (Inch)0.433"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.295"
Inscribed Circle Diameter (Inch)0.681"
Insert Thickness (Inch)0.275"
Insert Width (Inch)0.173"
Maximum Feed per Tooth0.0157"/tooth
Minimum Feed per Tooth0.0079"/tooth
Number of Cutting Edges8
Wiper Edge Length0.071"
ApplicationFace Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH3135
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Hard Materials, Hi Temp Alloys
