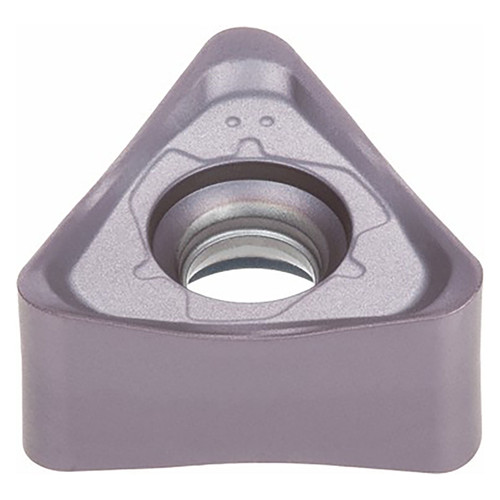

M-class, Double-sided triangle insert with 6 edges and MJ chipbreaker.
| # MFG | 6735208 |
| Cutting Edge Effective Length (Inch) | 0.472" |
| Corner Radius (Inch) | 0.063" |
| Depth of Cut Maximum (Inch) | 0.433" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.271" |
| Maximum Feed per Tooth | 0.0118"/tooth |
| Minimum Feed per Tooth | 0.0031"/tooth |
| Number of Cutting Edges | 6 |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
