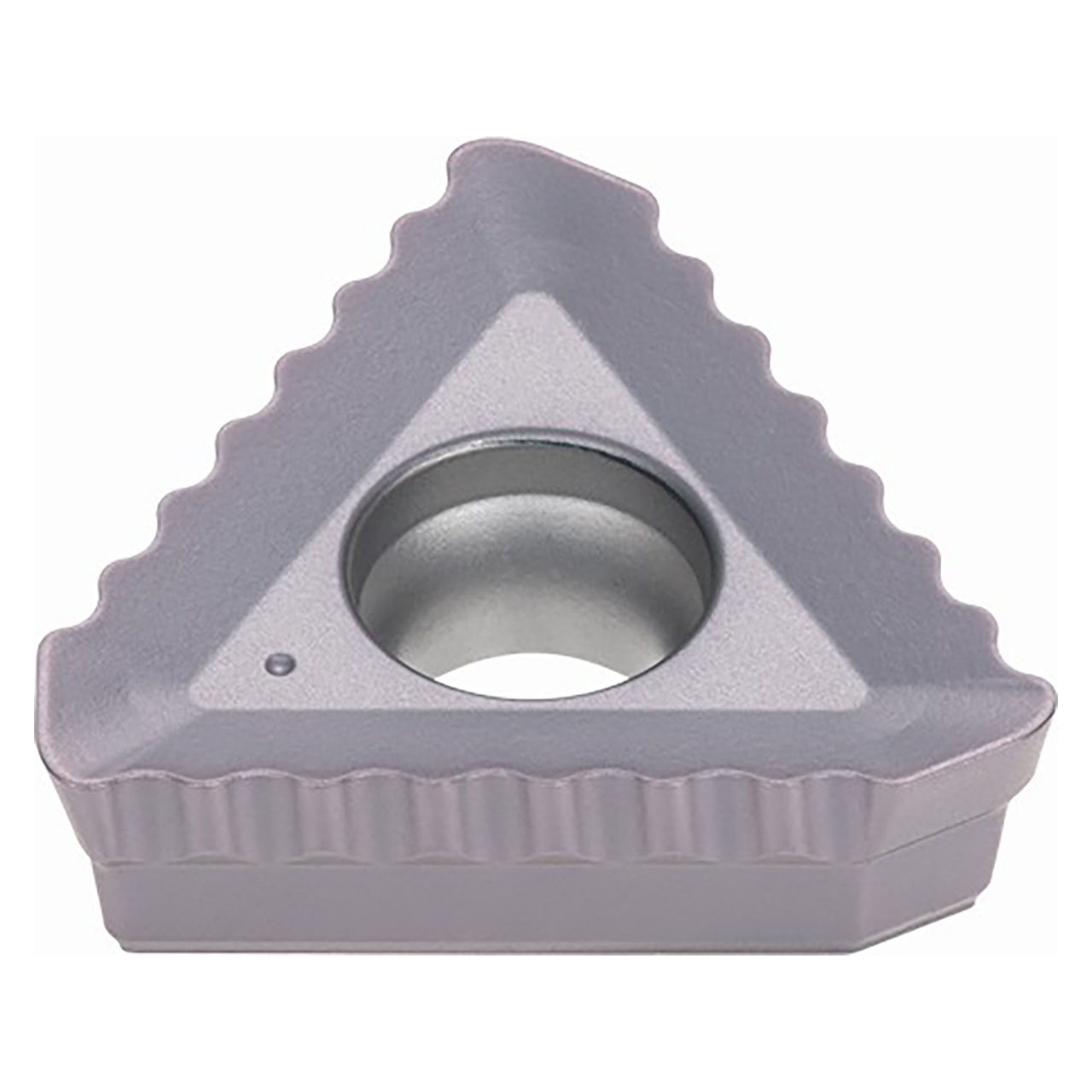

Tungaloy 6735589 | TCMT160620PDER-NMJ AH3135 0.524" Diameter x 0.228" Thickness x 0.079" Radius TiAlN Coated Carbide Milling Insert

$29.30 $24.32
(You save $4.98)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
17/32"
Inscribed Circle (Decimal Inch):
0.5240"
Inscribed Circle (mm):
13.31mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2280"
Thickness (mm):
5.79mm
interval quantity:
10
SKU:
23024415
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided triangle insert with serrated edges and NMJ chipbreaker.


Product Specifications
# MFG6735589
Cutting Edge Effective Length (Inch)0.63"
Corner Radius (Inch)0.0787"
Depth of Cut Maximum (Inch)0.63"
Inscribed Circle Diameter (Inch)0.524"
Insert Thickness (Inch)0.228"
Maximum Feed per Tooth0.0087"/tooth
Minimum Feed per Tooth0.0031"/tooth
Number of Cutting Edges3
Wiper Edge Length0.079"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH3135
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Hard Materials, Hi Temp Alloys
