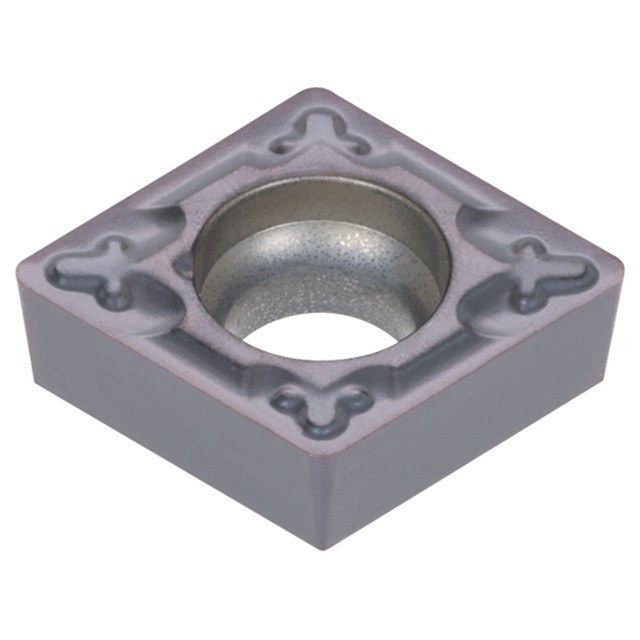

Tungaloy 6737244 | CCGT 21.51 F-01 SH725 1/4" Circle Diameter x 0.094" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$17.95 $12.57
(You save $5.38)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23128291
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 80 degree rhombic insert, for precision finishing.


Product Specifications
Manufacturer Part Number 6737244
Corner Radius (Inch) 0.016"
Cutting Edge Length (Inch) 0.256"
Maximum Depth of Cut (Inch) 0.0197"
Fixing Hole Diameter (Inch) 0.11"
Inscribed Circle Diameter (Inch) 1/4"
Insert Thickness (Inch) 0.094"
Maximum Turning Feed (Inch) 0.0059"/rev
Minimum Depth of Cut (Inch) 0.0007"
Minimum Turning Feed (Inch) 0.0012"/rev
Cutting Edge Material Carbide
Grade SH725
Tool Type Turn Positive Inserts
Applicable Material Steel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker Type 1
Major Clearance Angle 7 Degree
Body Material Carbide
