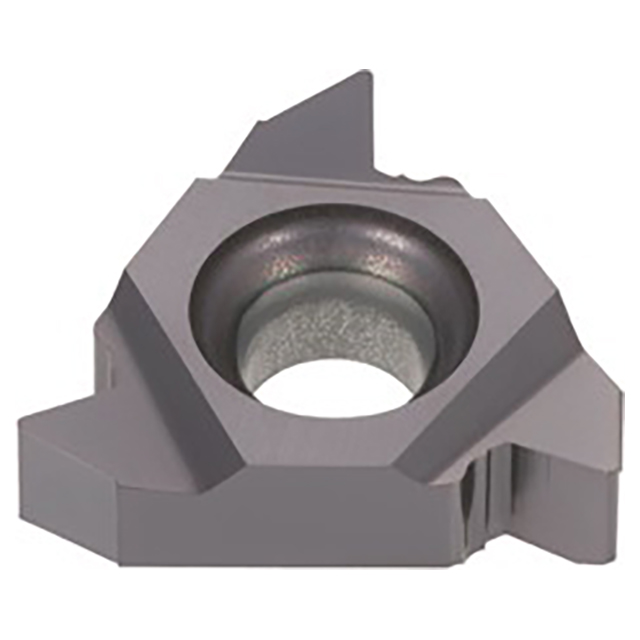

Name: Tungaloy 6739470 | 16ERA60-M NS9530 1.50mm Pitch x 0.002" Radius Carbide Right Hand Laydown Threading Insert
Brand: Tungaloy
SKU: 23128418
Availability: InStock

Tungaloy 6739470 | 16ERA60-M NS9530 1.50mm Pitch x 0.002" Radius Carbide Right Hand Laydown Threading Insert

$17.20 $12.04

(You save $5.16)

interval quantity:

SKU:

23128418

UPC:

Weight:

1.23 LBS

Minimum Purchase:

5 units

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

External 60 degree, partial profile.

Product Specifications

# MFG	6739470
Maximum Thread Pitch (mm)	1.50mm
Minimum Thread Pitch (mm)	0.5mm
Corner Radius (Inch)	0.0024"
Maximum Threads per Inch	48 Threads
Minimum Threads per Inch	16 Threads
Grade	NS9530
Cutting Direction	Right Hand
Application	Inserts
Applicable Material	Steel, Stainless Steel, Cast Iron
Tool Type	Threading Regular Inserts
Cutting Edge Material	Cermet
Body Material	Carbide
