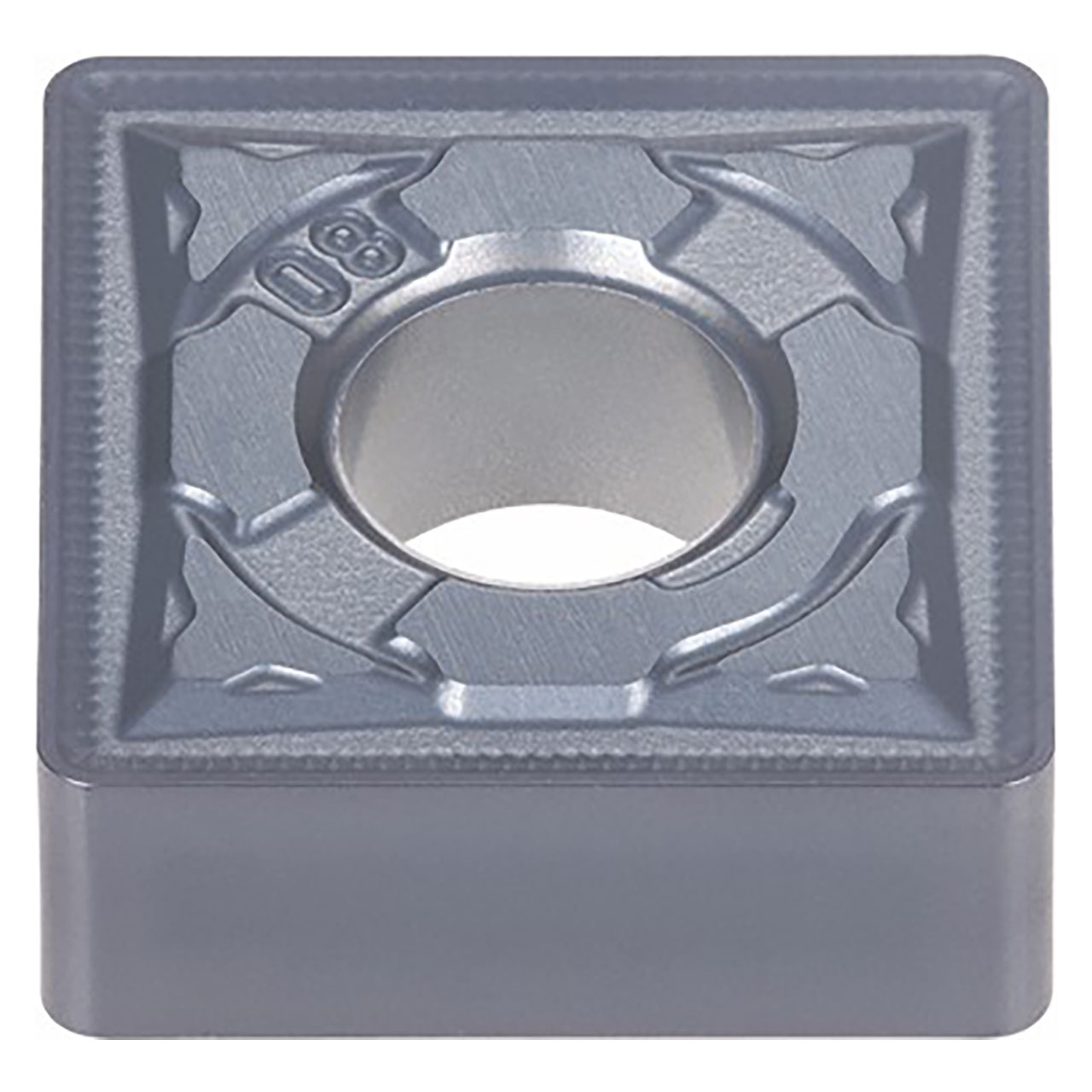

Tungaloy 6741680 | SNMG 542 HRM AH8015 5/8" Circle Diameter x 1/4" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$26.15 $18.31
(You save $7.84)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.87mm
Thickness (Inch):
1/4"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23128508
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, square insert, for medium cutting to finishing of super alloy.


Product Specifications
# MFG6741680
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)5/8"
Maximum Depth of Cut (Inch)0.1575"
Fixing Hole Diameter (Inch)1/4"
Inscribed Circle Diameter (Inch)5/8"
Insert Thickness (Inch)1/4"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH8015
Applicable MaterialStainless Steel, Hard Materials, Hi Temp Alloys
Chip Breaker TypeHRM-R08
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.87mm
Thickness (Inch):
1/4"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
