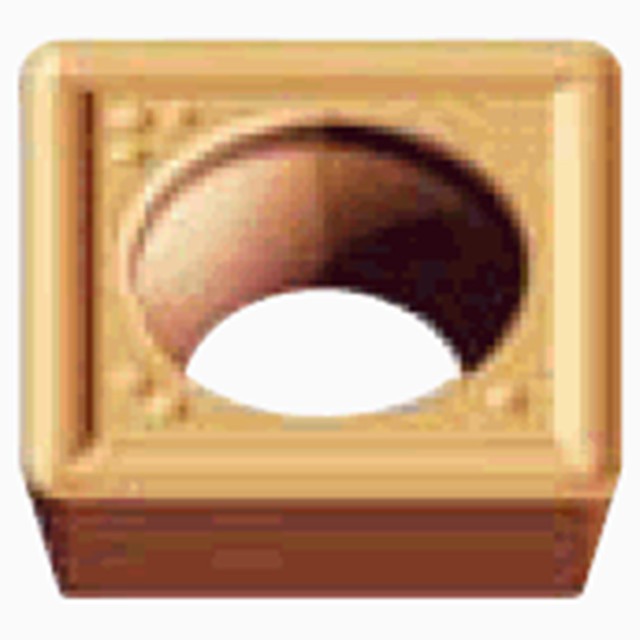

Tungaloy 6747832 | SPMT 431 CM T515 1/2" Circle Diameter x 0.187" Thickness x 0.016" Radius TiCN+Al2O3 Coated Carbide Indexable Turning Insert

$21.15 $14.81
(You save $6.34)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23066765
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, square insert, for multi-purpose cutting of grey and ductile cast iron.


Product Specifications
Manufacturer Part Number6747832
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)1/2"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.217"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiCN+Al2O3
Cutting Edge MaterialCarbide
GradeT515
Tool TypeTurn Positive Inserts
Applicable MaterialCast Iron
Chip Breaker TypeCM
Major Clearance Angle11 Degree
Body MaterialCarbide
