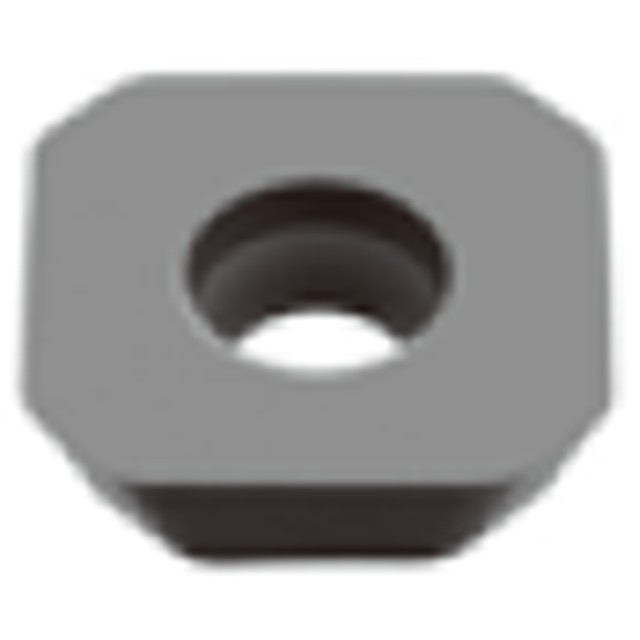

Tungaloy 6750620 | SWMW13T3AFTR T1215 0.547" Diameter x 0.157" Thickness x 0.059" Radius TiCN+Al2O3 Coated Carbide Milling Insert

$18.40 $15.27
(You save $3.13)
Brand:
Tungaloy
Finish/Coating:
TiCN+Al2O3+TiN
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.5470"
Thickness (Decimal Inch):
0.1570"
Width (Decimal Inch):
0.5470"
SKU:
23128728
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Flat-top insert with excellent impact resistance.


Product Specifications
Manufacturer Part Number6750620
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.197"
Inscribed Circle Diameter (Inch)0.547"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.547"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.079"
ApplicationFace Milling
CoatingTiCN+Al2O3
Body MaterialCarbide
GradeT1215
Cutting Edge MaterialCarbide
Applicable MaterialCast Iron
