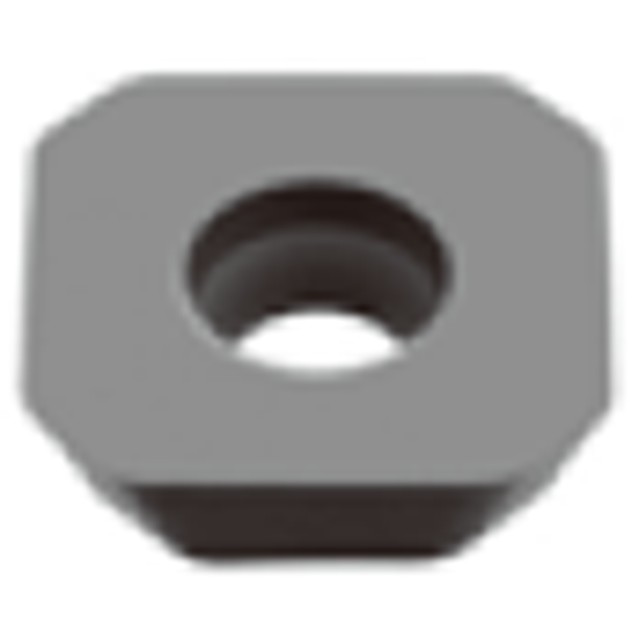

Tungaloy 6846113 | SWMW13T3AFTR NS740 0.547" Diameter x 0.157" Thickness x 0.059" Radius Cermet Milling Insert

$14.40 $11.95
(You save $2.45)
Brand:
Tungaloy
Finish/Coating:
Uncoated
Material:
Cermet
Inscribed Circle (Decimal Inch):
0.5470"
Thickness (Decimal Inch):
0.1570"
Width (Decimal Inch):
0.5470"
interval quantity:
10
SKU:
23136546
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Flat-top insert with excellent impact resistance.


Product Specifications
Manufacturer Part Number 6846113
Corner Radius (Inch) 0.059"
Depth of Cut Maximum (Inch) 0.197"
Inscribed Circle Diameter (Inch) 0.547"
Insert Thickness (Inch) 0.157"
Insert Width (Inch) 0.547"
Maximum Feed per Tooth 0.0079"/tooth
Minimum Feed per Tooth 0.002"/tooth
Number of Cutting Edges 4
Wiper Edge Length 0.079"
Application Face Milling
Body Material Carbide
Grade NS740
Cutting Edge Material Cermet
Applicable Material Steel, Stainless Steel
