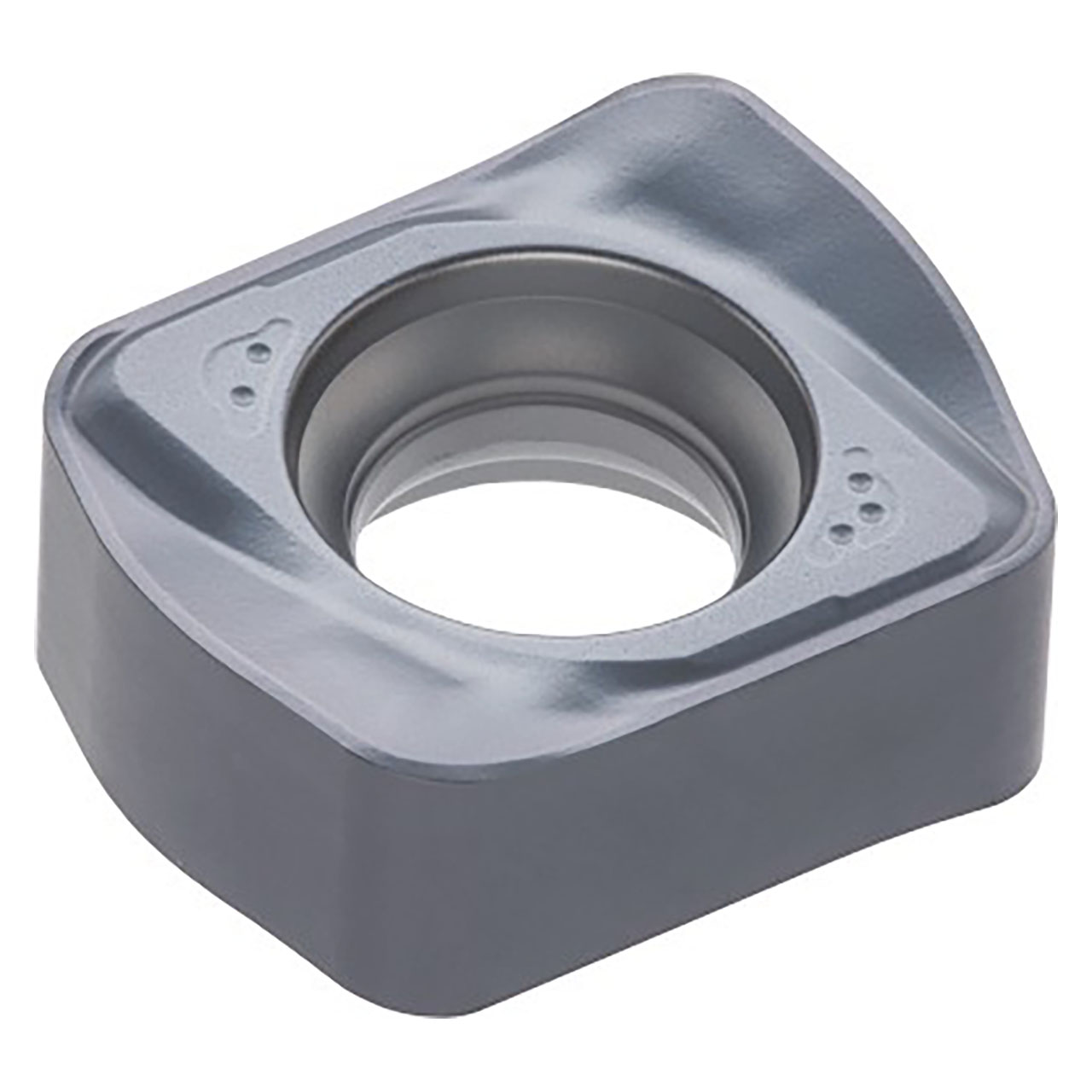

Double sided insert with 4 edges and MH chipbreaker.
| # MFG | 6756097 |
| Cutting Edge Effective Length (Inch) | 0.236" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.059" |
| Insert Thickness (Inch) | 0.276" |
| Insert Width (Inch) | 0.472" |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH8015 |
| Cutting Edge Material | Carbide |
| Applicable Material | Stainless Steel, Hard Materials, Hi Temp Alloys |
