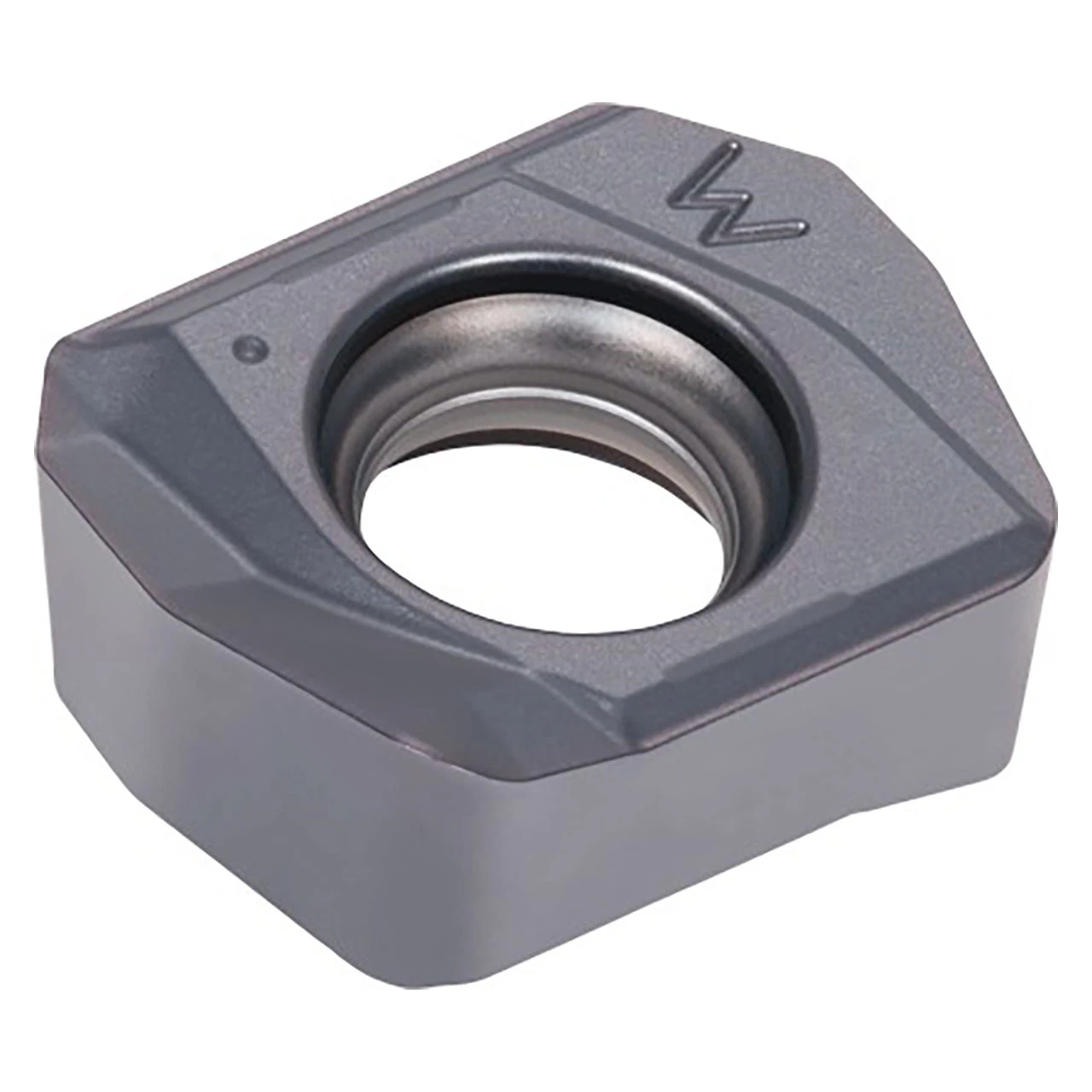

Double sided insert with 2 wiper edges.
| # MFG | 6999366 |
| Cutting Edge Effective Length (Inch) | 0.236" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.059" |
| Insert Thickness (Inch) | 0.276" |
| Insert Width (Inch) | 0.472" |
| Maximum Feed per Tooth | 0.059"/tooth |
| Minimum Feed per Tooth | 0.0197"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.142" |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
